Adjustable Feet
Tilting Adjustable Feet
Tilting adjustable feet for 100-2500kg maximum loads.
48 SKUs18 ranges
Need help choosing?
Tell us the load, thread length, thread size, base diameter, tilt type, and material.
Freecall 1800 644 434How to choose Tilting Adjustable Feet
48 SKUs- Compare thread sizes, load ratings, materials and finishes before requesting pricing.
- Use the range and related product links to move between close alternatives without relying on filter-only URLs.
- Send Flexliner the part number and quantity when the shortlist is ready for quote confirmation.
Applications and Quote Prep
- Tilting Adjustable Feet are used where buyers need repeatable support, levelling, tube finishing, or machine setup from a known part number.
- The visible SKU table supports quoting by keeping commercial identifiers and selection specs on the page.
Related Ranges
General Adjustable Feet
24 SKUs
45-75mm thread lengths for standard machine and bench adjustment.
Long Thread Adjustable Feet
35 SKUs
80mm to 150mm+ thread lengths for larger adjustment ranges.
Low Profile Adjustable Feet
49 SKUs
10-27mm thread lengths for small adjustments on tables and light equipment.
Low Profile Tilting Adjustable Feet
8 SKUs
Short tilting feet for uneven floors and angled legs.
Showing 48 of 48 SKUs
HDAF-5020
Tilting HDAF-5020
- Thread
- M10
- Thread length
- 37.5 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5438
Tilting HDAF-5438
- Thread
- M10
- Thread length
- 60 mm
- Load
- 500 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5440s4
Tilting HDAF-5440s4
- Thread
- M10
- Thread length
- 60 mm
- Load
- 500 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)

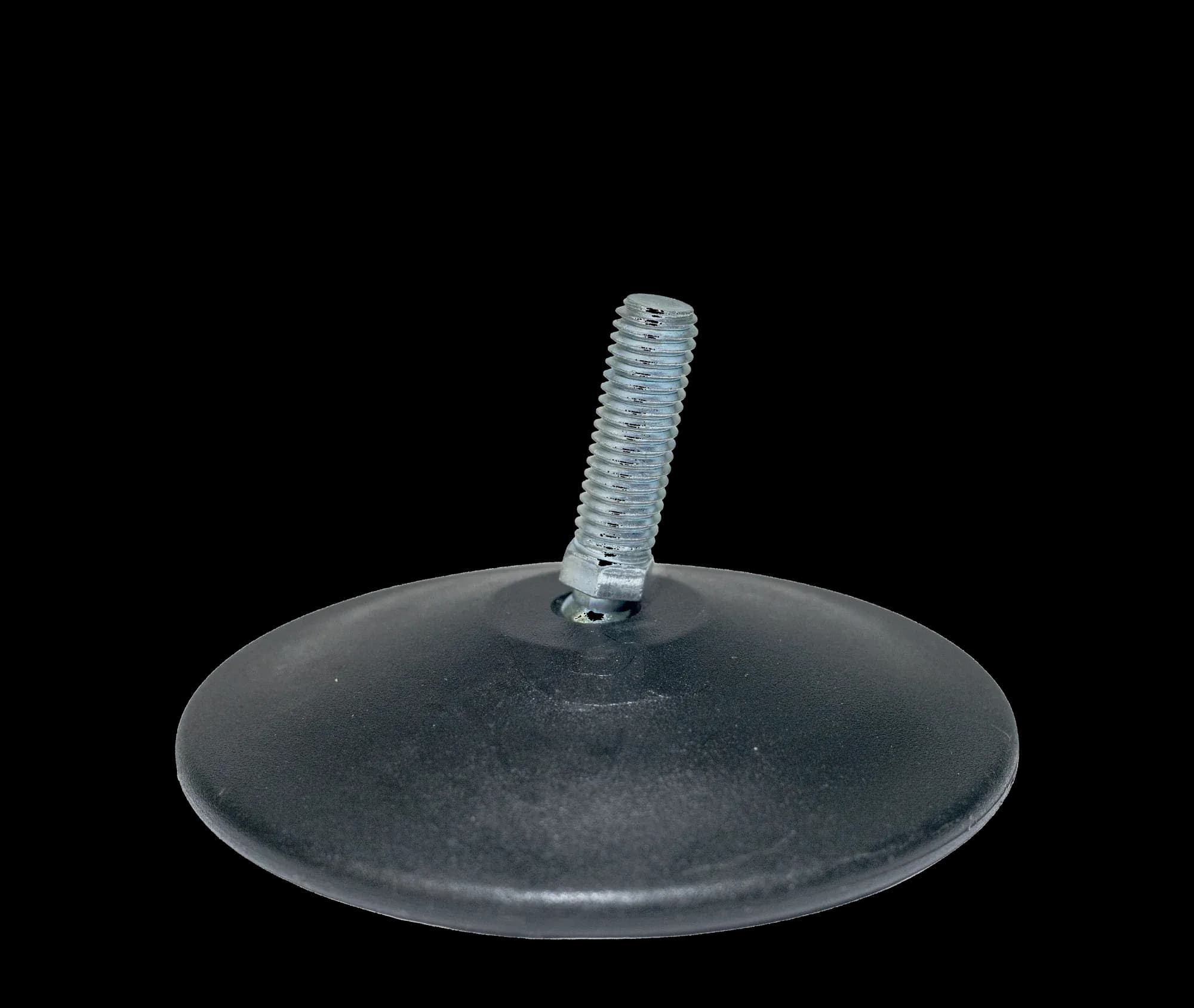

HDAF-5447
Tilting HDAF-5447
- Thread
- M10
- Thread length
- 30 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)

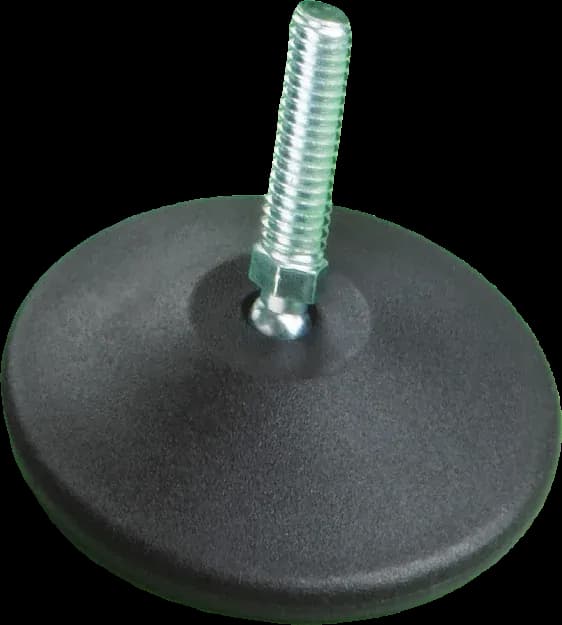

HDAF-5448
Tilting HDAF-5448
- Thread
- M10
- Thread length
- 30 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5450
Tilting HDAF-5450
- Thread
- M12
- Thread length
- 100 mm
- Load
- 750 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5451
Tilting HDAF-5451
- Thread
- M16
- Thread length
- 100 mm
- Load
- 1000 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5452
Tilting HDAF-5452
- Thread
- M16
- Thread length
- 70 mm
- Load
- 500 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5453
Tilting HDAF-5453
- Thread
- M20
- Thread length
- 120 mm
- Load
- 500 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5490
Tilting HDAF-5490
- Thread
- M12
- Thread length
- 165 mm
- Load
- 900 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5492
Tilting HDAF-5492
- Thread
- M16
- Thread length
- 165 mm
- Load
- 1100 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDAF-5494
Tilting HDAF-5494
- Thread
- M20
- Thread length
- 165 mm
- Load
- 1200 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDLB-5472
Tilting HDLB-5472
- Thread
- M8
- Thread length
- 12 mm
- Load
- 750 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HDMF-5470
Tilting HDMF-5470
- Thread
- M16
- Thread length
- 100 mm
- Load
- 2000 kg
- Tilt
- Tilting
- Material/finish
- Mild Steel (Zinc Plated)
HDMF-5471
Tilting HDMF-5471
- Thread
- M16
- Thread length
- 150 mm
- Load
- 2000 kg
- Tilt
- Tilting
- Material/finish
- Mild Steel (Zinc Plated)
HDMF-5472
Tilting HDMF-5472
- Thread
- M16
- Thread length
- 100 mm
- Load
- 2000 kg
- Tilt
- Tilting
- Material/finish
- Mild Steel (Zinc Plated)
HDMF-5475
Tilting HDMF-5475
- Thread
- M20
- Thread length
- 100 mm
- Load
- 2500 kg
- Tilt
- Tilting
- Material/finish
- Mild Steel (Zinc Plated)
HDMF-5476
Tilting HDMF-5476
- Thread
- M20
- Thread length
- 150 mm
- Load
- 2500 kg
- Tilt
- Tilting
- Material/finish
- Mild Steel (Zinc Plated)
HDMF-5478
Tilting HDMF-5478
- Thread
- M20
- Thread length
- 150 mm
- Load
- 2000 kg
- Tilt
- Tilting
- Material/finish
- Mild Steel (Zinc Plated)
HSAF-5454s4
Tilting HSAF-5454s4
- Thread
- M12
- Thread length
- 100 mm
- Load
- 750 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)
HSAF-5455s4
Tilting HSAF-5455s4
- Thread
- M16
- Thread length
- 100 mm
- Load
- 750 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)
HSAF-5491s4
Tilting HSAF-5491s4
- Thread
- M12
- Thread length
- 165 mm
- Load
- 900 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)
HSAF-5493s4
Tilting HSAF-5493s4
- Thread
- M16
- Thread length
- 165 mm
- Load
- 1100 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)
HSAF-5495s4
Tilting HSAF-5495s4
- Thread
- M20
- Thread length
- 165 mm
- Load
- 1200 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)
HSEF-5437
Tilting HSEF-5437
- Thread
- M10
- Thread length
- 60 mm
- Load
- 500 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
HSEF-5439s4
Tilting HSEF-5439s4
- Thread
- M10
- Thread length
- 60 mm
- Load
- 500 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)
TLF-5003
Tilting TLF-5003
- Thread
- M6
- Thread length
- 25 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5005
Tilting TLF-5005
- Thread
- M8
- Thread length
- 50 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLF-5005LG
Tilting TLF-5005LG
- Thread
- M8
- Thread length
- 50 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLF-5010
Tilting TLF-5010
- Thread
- M8
- Thread length
- 25 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5011
Tilting TLF-5011
- Thread
- M8
- Thread length
- 27 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide), Stainless Steel (Zinc Plated)
TLF-5013
Tilting TLF-5013
- Thread
- M8
- Thread length
- 60 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polypropylene (PP) (Zinc Plated)

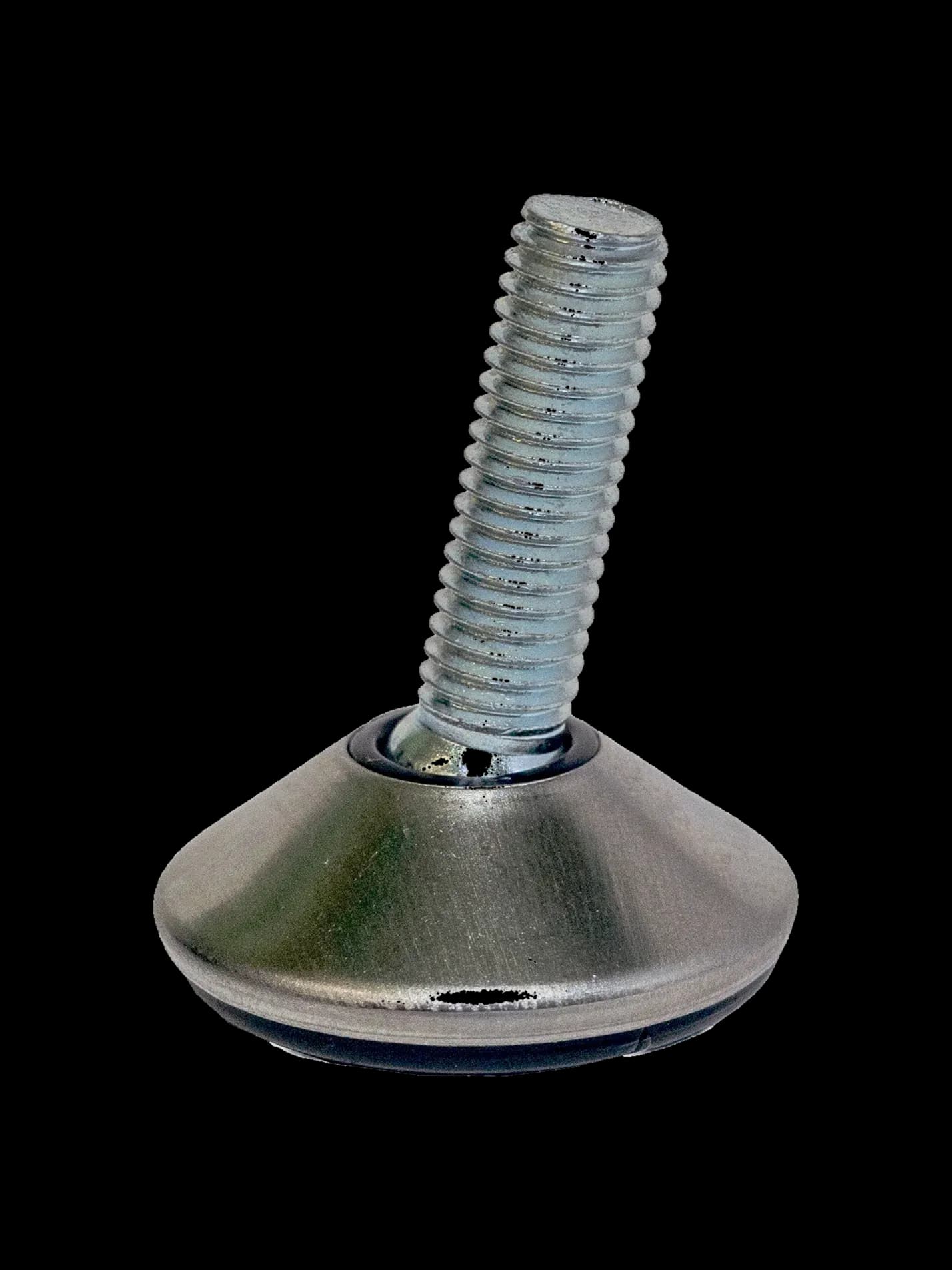

TLF-5015
Tilting TLF-5015
- Thread
- M10
- Thread length
- 30 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)

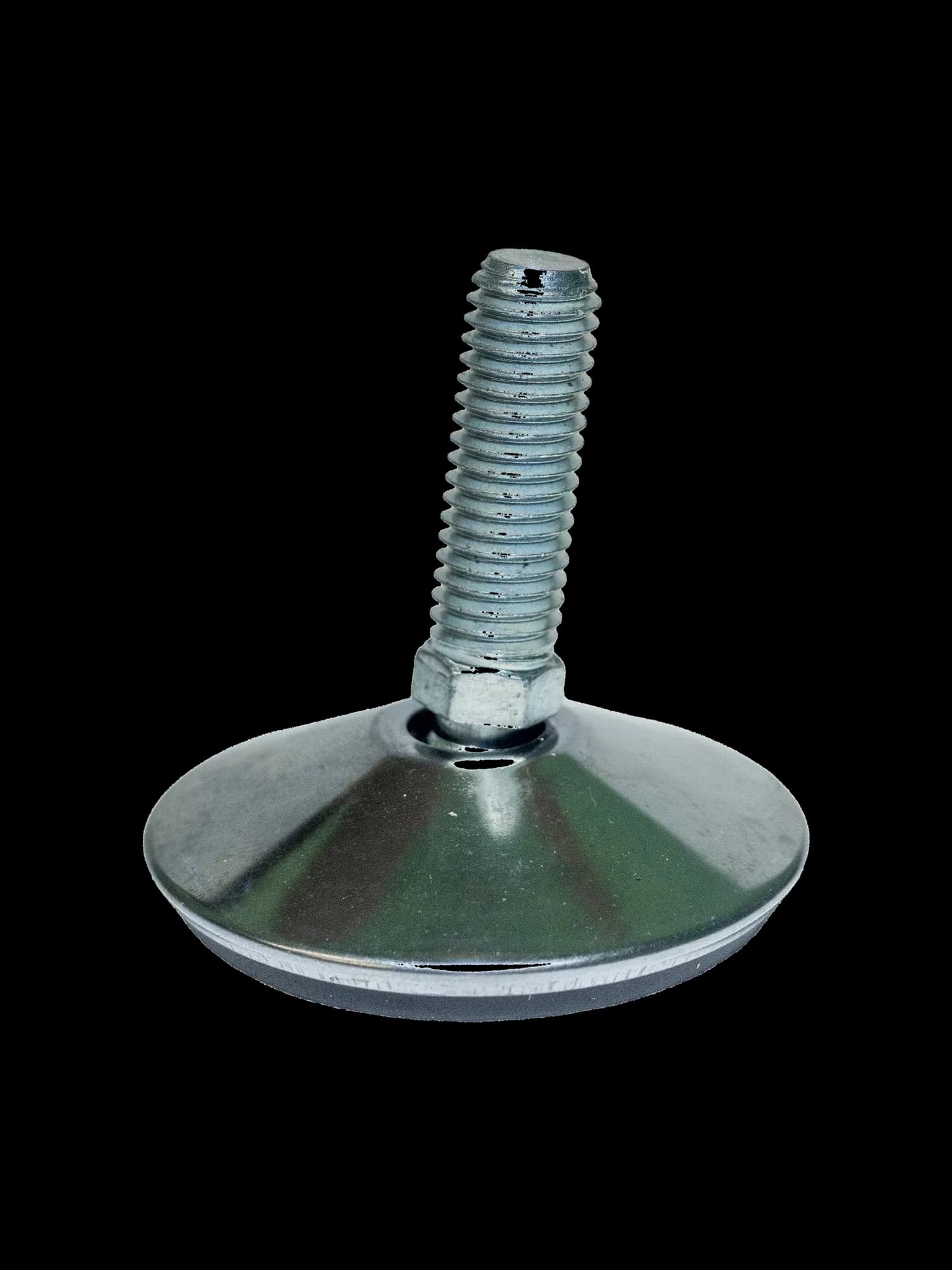

TLF-5016
Tilting TLF-5016
- Thread
- M10
- Thread length
- 30 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5022
Tilting TLF-5022
- Thread
- M10
- Thread length
- 75 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5025
Tilting TLF-5025
- Thread
- M10
- Thread length
- 75 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLF-5029
Tilting TLF-5029
- Thread
- M10
- Thread length
- 100 mm
- Load
- 250 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5030
Tilting TLF-5030
- Thread
- M12
- Thread length
- 50 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5031
Tilting TLF-5031
- Thread
- M12
- Thread length
- 100 mm
- Load
- 250 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5032
Tilting TLF-5032
- Thread
- M12
- Thread length
- 100 mm
- Load
- 250 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLF-5442
Tilting TLF-5442
- Thread
- M8
- Thread length
- 25 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLF-5442LG
Tilting TLF-5442LG
- Thread
- M8
- Thread length
- 25 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLF-5445
Tilting TLF-5445
- Thread
- M10
- Thread length
- 37.5 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLF-5445LG
Tilting TLF-5445LG
- Thread
- M10
- Thread length
- 37.5 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLFB-5019
Tilting TLFB-5019
- Thread
- M10
- Thread length
- 75 mm
- Load
- 100 kg
- Tilt
- Tilting
- Material/finish
- Polyethylene (PE) (Zinc Plated)
TLFR-5480
Tilting TLFR-5480
- Thread
- M10
- Thread length
- 65 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLFR-5480LG
Tilting TLFR-5480LG
- Thread
- M10
- Thread length
- 65 mm
- Load
- 300 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide) (Zinc Plated)
TLFS-5008
Tilting TLFS-5008
- Thread
- M8
- Thread length
- 80 mm
- Load
- 350 kg
- Tilt
- Tilting
- Material/finish
- Nylon (Polyamide)
