Adjustable Feet

Threaded Tube Inserts

Square Threaded Tube Inserts

Square threaded tube inserts for 50-300kg max load.

Need help choosing?

Tell us the load, thread length, thread size, base diameter, tilt type, and material.

Request a QuoteCall 1800 644 434

Showing 148 of 148 products

M6 16x16x1-2mm Threaded Tube Insert (STTi-5850)

Thread
M6
Tube size
16 x 16 mm
Wall thickness
1-2 mm
Max static load
50 kg
Housing
PE
Thread material
MSZP

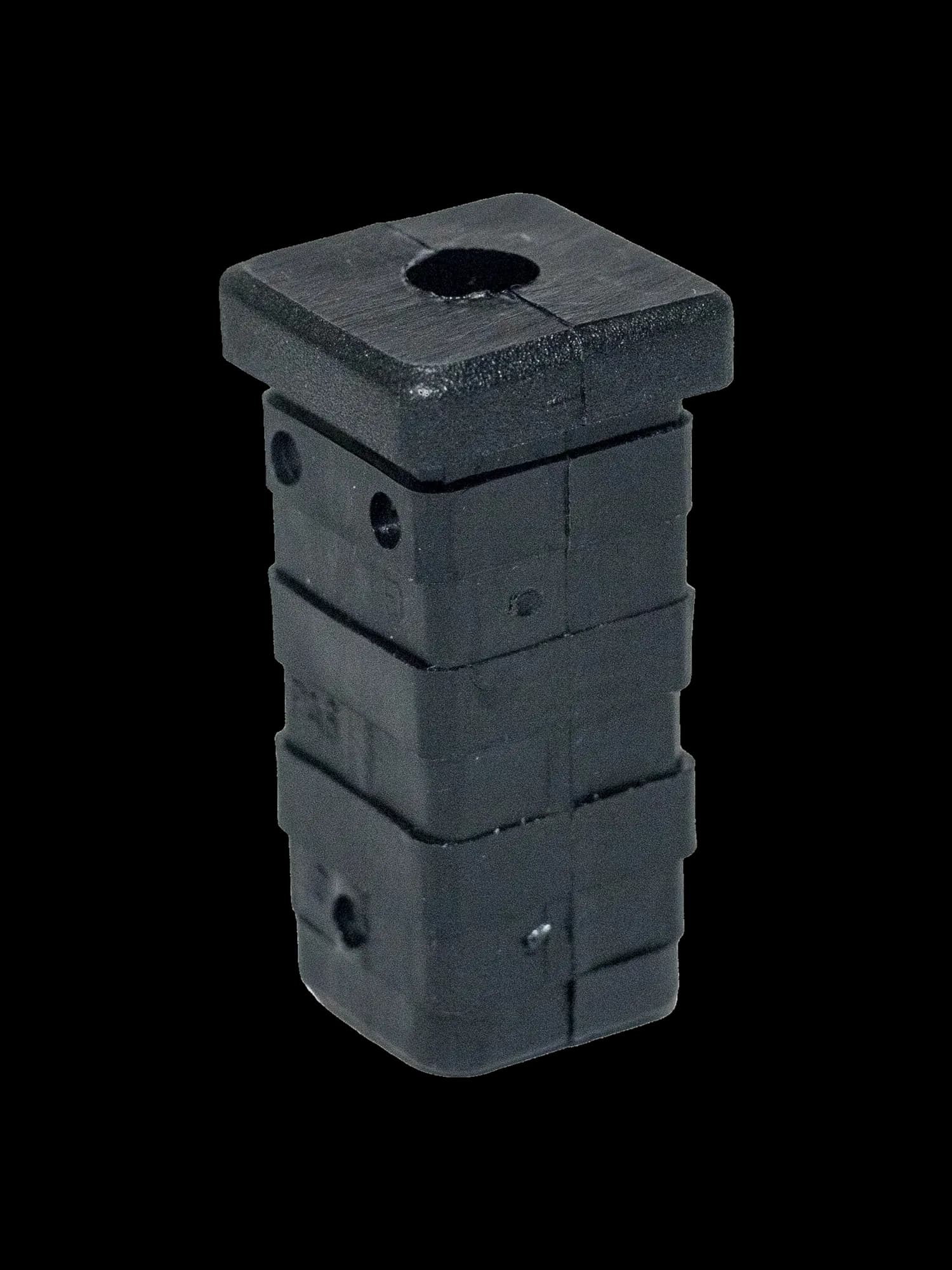

Flexliner SETi-5609 product photo

M6 20x20x1.6mm Threaded Tube Insert (SETi-5609)

Thread
M6
Tube size
20 x 20 mm
Wall thickness
1.6 mm
Max static load
100 kg
Housing
PA
Thread material
MSZP

M6 20x20x1.6-2mm Threaded Tube Insert (STTi-5613)

Thread
M6
Tube size
20 x 20 mm
Wall thickness
1.6-2 mm
Max static load
100 kg
Housing
PA
Thread material
MSZP

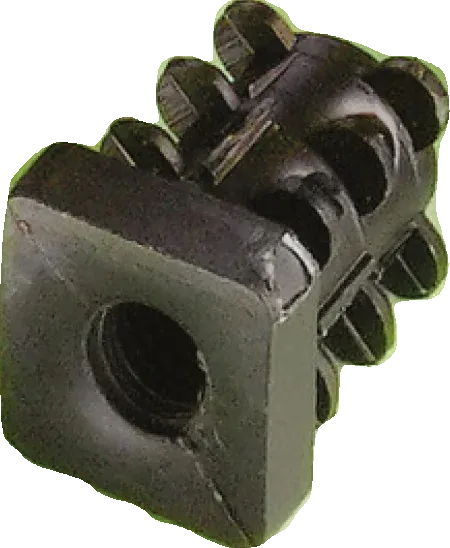

Flexliner STTi-5610 product photo

M8 16x16x1-1.6mm Threaded Tube Insert (STTi-5610)

Thread
M8
Tube size
16 x 16 mm
Wall thickness
1-1.6 mm
Max static load
50 kg
Housing
PE
Thread material
PE

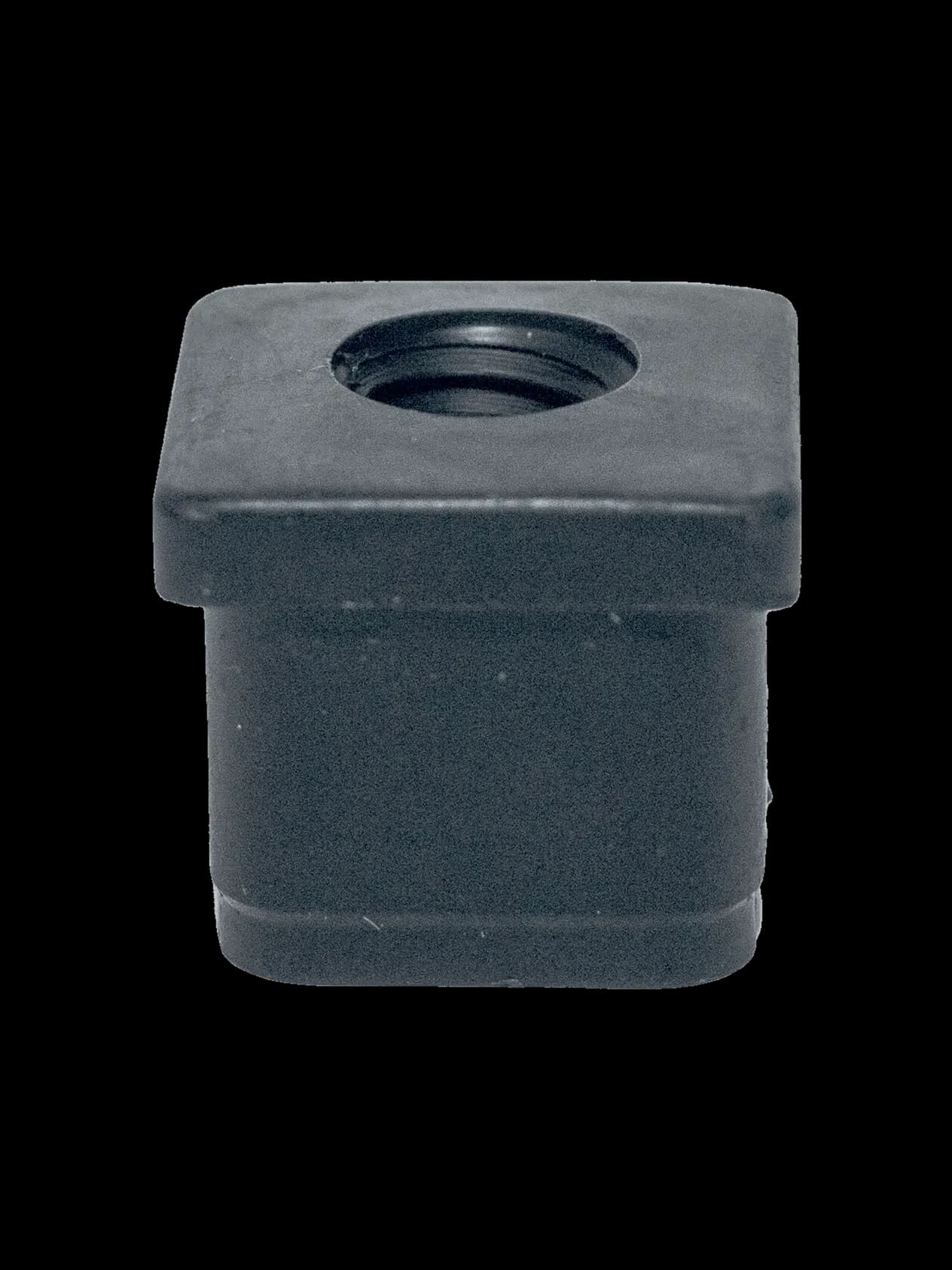

Flexliner STTi-5611 product photo

M8 19x19x1.2mm Threaded Tube Insert (STTi-5611)

Thread
M8
Tube size
19 x 19 mm
Wall thickness
1.2 mm
Max static load
150 kg
Housing
HIPS
Thread material
HIPS
STTi-5612 Square Threaded Tube Inserts product image

M8 19x19x1.6mm Threaded Tube Insert (STTi-5612)

Thread
M8
Tube size
19 x 19 mm
Wall thickness
1.6 mm
Max static load
150 kg
Housing
HIPS
Thread material
HIPS

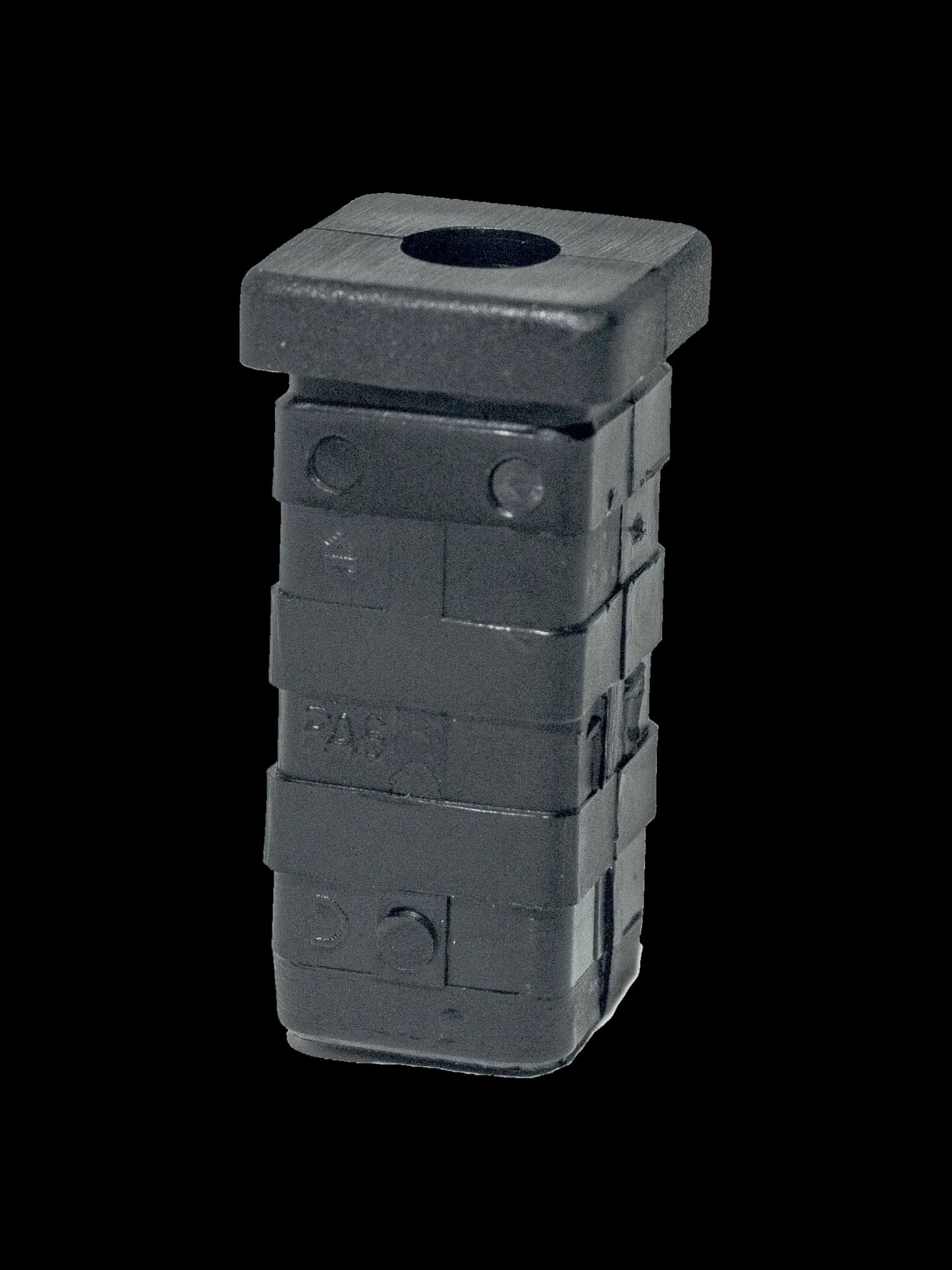

Flexliner SETi-5858 product photo

M8 20x20x1.6mm Threaded Tube Insert (SETi-5858)

Thread
M8
Tube size
20 x 20 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner STTi-5851 product photo

M8 20x20x1.6-2mm Threaded Tube Insert (STTi-5851)

Thread
M8
Tube size
20 x 20 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5617 Square Threaded Tube Inserts product image

M8 22x22x1.6mm Threaded Tube Insert (SETi-5617)

Thread
M8
Tube size
22 x 22 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner STTi-5785 product photo

M8 22x22x1.6-2mm Threaded Tube Insert (STTi-5785)

Thread
M8
Tube size
22 x 22 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—

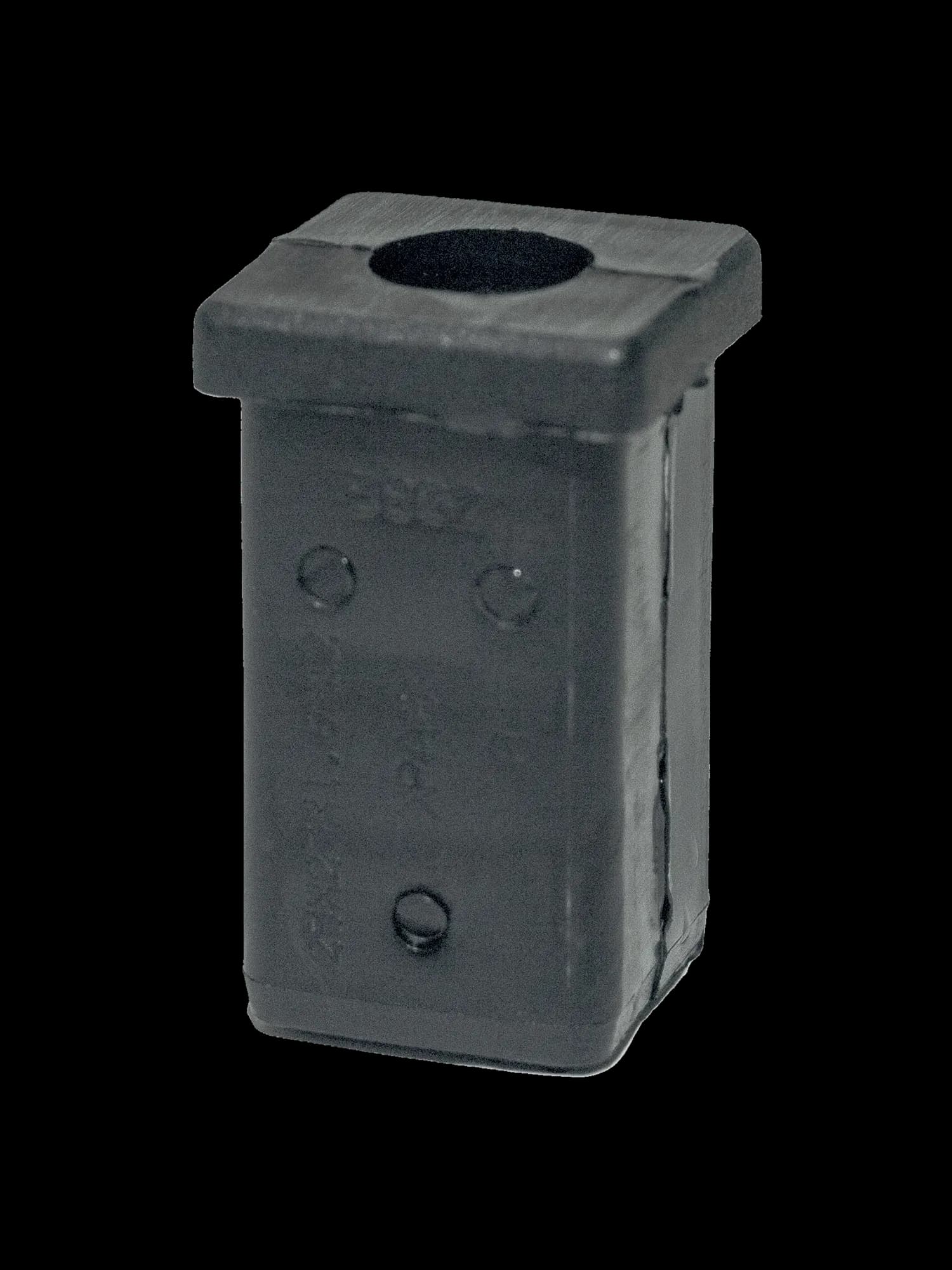

SETi-5620 Square Threaded Tube Inserts product image

M8 25x25x1.6mm Threaded Tube Insert (SETi-5620)

Thread
M8
Tube size
25 x 25 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner STHi-5705 product photo

M8 25x25x1.6mm Threaded Tube Insert (STHi-5705)

Thread
M8
Tube size
25 x 25 mm
Wall thickness
1.6 mm
Max static load
450 kg
Housing
PA-GF
Thread material
BrassNP
STTi-5673 Square Threaded Tube Inserts product image

M8 25x25x2.5-3mm Threaded Tube Insert (STTi-5673)

Thread
M8
Tube size
25 x 25 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5852 Square Threaded Tube Inserts product image

M8 25x25x1.6-2mm Threaded Tube Insert (STTi-5852)

Thread
M8
Tube size
25 x 25 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5622 Square Threaded Tube Inserts product image

M8 25.4x25.4x1.2-1.6mm Threaded Tube Insert (STTi-5622)

Thread
M8
Tube size
25.4 x 25.4 mm
Wall thickness
1.2-1.6 mm
Max static load
150 kg
Housing
PP
Thread material
—

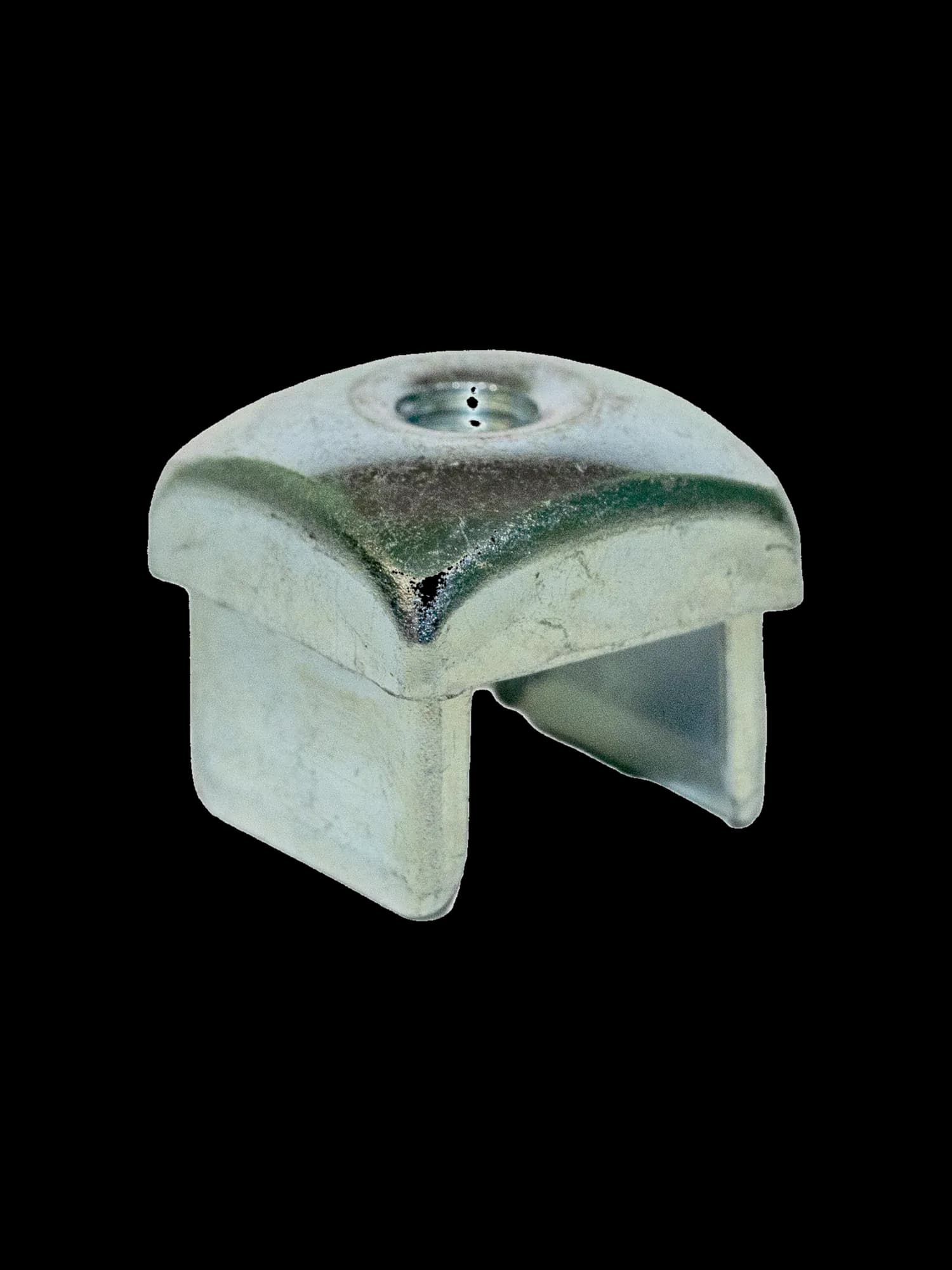

Flexliner STTi-5623 product photo

M8 25.4x25.4x1.6mm Threaded Tube Insert (STTi-5623)

Thread
M8
Tube size
25.4 x 25.4 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
MS
Thread material
—

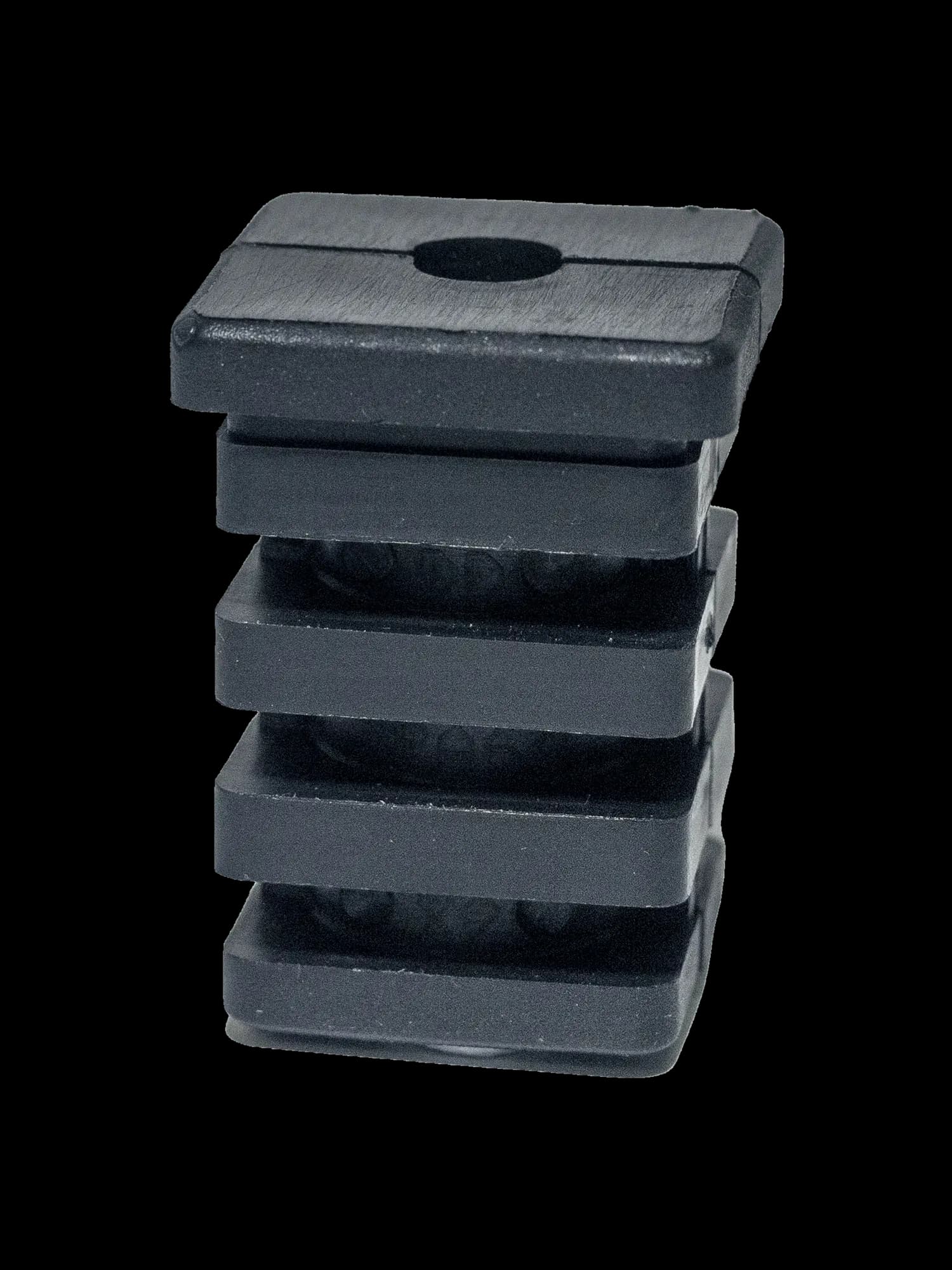

SETi-5629 Square Threaded Tube Inserts product image

M8 30x30x1.6mm Threaded Tube Insert (SETi-5629)

Thread
M8
Tube size
30 x 30 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner SETi-5630 product photo

M8 30x30x2mm Threaded Tube Insert (SETi-5630)

Thread
M8
Tube size
30 x 30 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP

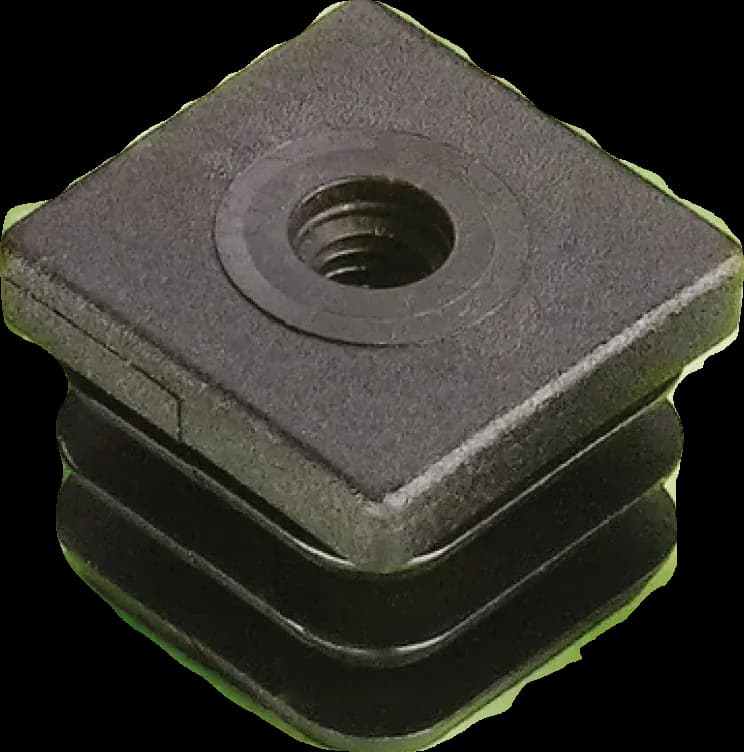

Flexliner STTi-5628 product photo

M8 30x30x1.6-2mm Threaded Tube Insert (STTi-5628)

Thread
M8
Tube size
30 x 30 mm
Wall thickness
1.6-2 mm
Max static load
300 kg
Housing
HIPS
Thread material
HIPS
STTi-5674 Square Threaded Tube Inserts product image

M8 30x30x2.5-3mm Threaded Tube Insert (STTi-5674)

Thread
M8
Tube size
30 x 30 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
PA
STTi-5639 Square Threaded Tube Inserts product image

M8 32x32x1.6-2mm Threaded Tube Insert (STTi-5639)

Thread
M8
Tube size
32 x 32 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5768 Square Threaded Tube Inserts product image

M8 32x32x1.2-2mm Threaded Tube Insert (STTi-5768)

Thread
M8
Tube size
32 x 32 mm
Wall thickness
1.2-2 mm
Max static load
300 kg
Housing
PA
Thread material
—

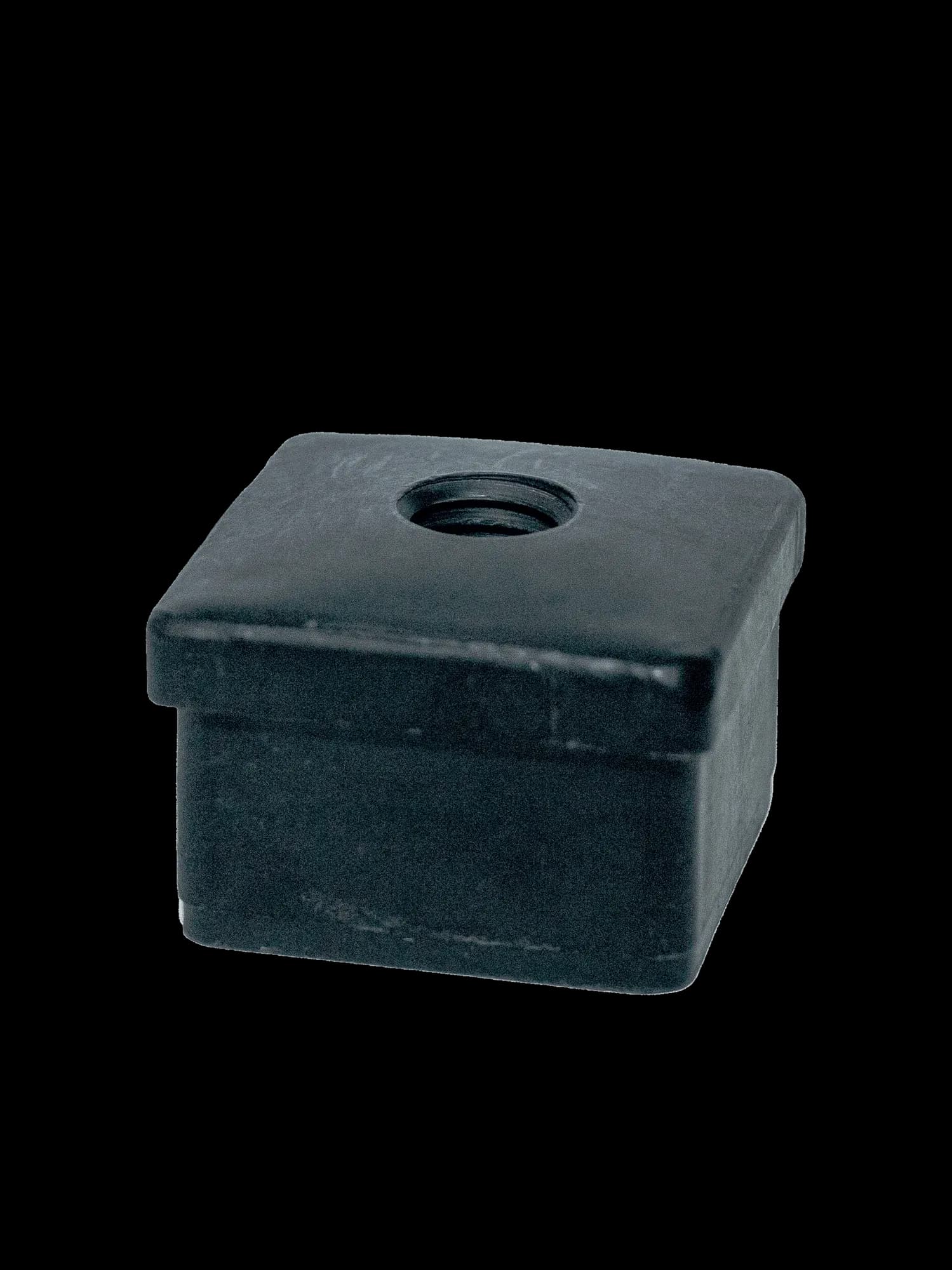

STTi-5864 Square Threaded Tube Inserts product image

M8 32x32x1.6mm Threaded Tube Insert (STTi-5864)

Thread
M8
Tube size
32 x 32 mm
Wall thickness
1.6 mm
Max static load
200 kg
Housing
HIPS
Thread material
—
STTi-5408 Square Threaded Tube Inserts product image

M8 35x35x1.6-2mm Threaded Tube Insert (STTi-5408)

Thread
M8
Tube size
35 x 35 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—

M8 38x38x1.6-2mm Threaded Tube Insert (STHi-5669)

Thread
M8
Tube size
38 x 38 mm
Wall thickness
1.6-2 mm
Max static load
500 kg
Housing
PA
Thread material
MSZP
STTi-5410 Square Threaded Tube Inserts product image

M8 38x38x1.6-2mm Threaded Tube Insert (STTi-5410)

Thread
M8
Tube size
38 x 38 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
Flexliner STHi-5714 product photo

M8 40x40x1.6mm Threaded Tube Insert (STHi-5714)

Thread
M8
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STHi-5715 Square Threaded Tube Inserts product image

M8 40x40x2mm Threaded Tube Insert (STHi-5715)

Thread
M8
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STTi-5414 Square Threaded Tube Inserts product image

M8 40x40x1.6-2mm Threaded Tube Insert (STTi-5414)

Thread
M8
Tube size
40 x 40 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5676 Square Threaded Tube Inserts product image

M8 40x40x2.5-3mm Threaded Tube Insert (STTi-5676)

Thread
M8
Tube size
40 x 40 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
—
STHi-5719 Square Threaded Tube Inserts product image

M8 50x50x1.6mm Threaded Tube Insert (STHi-5719)

Thread
M8
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STHi-5720 Square Threaded Tube Inserts product image

M8 50x50x2mm Threaded Tube Insert (STHi-5720)

Thread
M8
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STTi-5672 Square Threaded Tube Inserts product image

M8 50x50x2.5-3mm Threaded Tube Insert (STTi-5672)

Thread
M8
Tube size
50 x 50 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5849 Square Threaded Tube Inserts product image

M8 50x50x1.6-2mm Threaded Tube Insert (STTi-5849)

Thread
M8
Tube size
50 x 50 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—

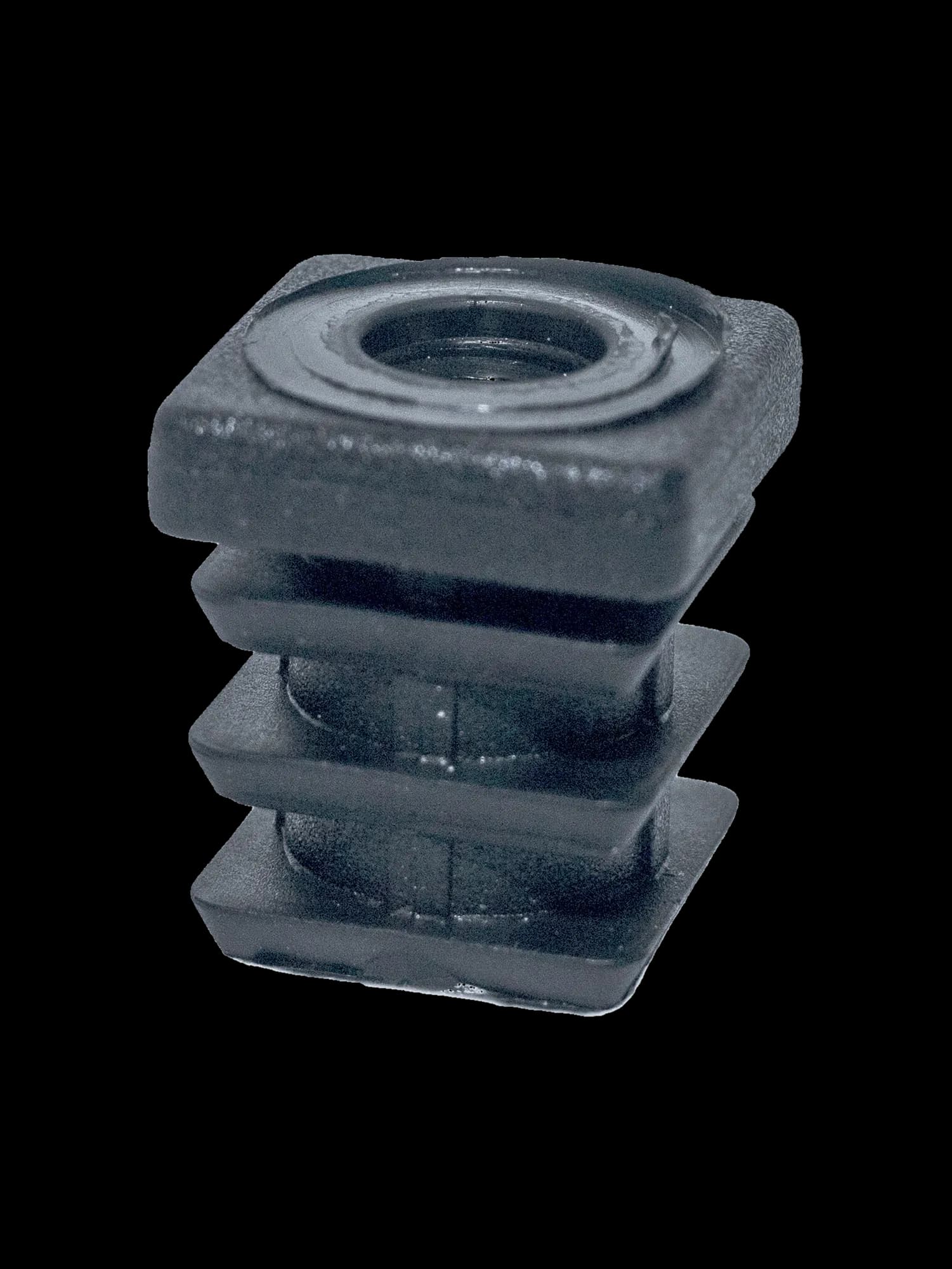

STTi-5614 Square Threaded Tube Inserts product image

M10 20x20x1.6-2mm Threaded Tube Insert (STTi-5614)

Thread
M10
Tube size
20 x 20 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5615 Square Threaded Tube Inserts product image

M10 20x20x1.6-2mm Threaded Tube Insert (STTi-5615)

Thread
M10
Tube size
20 x 20 mm
Wall thickness
1.6-2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5649 Square Threaded Tube Inserts product image

M10 22x22x1.6mm Threaded Tube Insert (SETi-5649)

Thread
M10
Tube size
22 x 22 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP

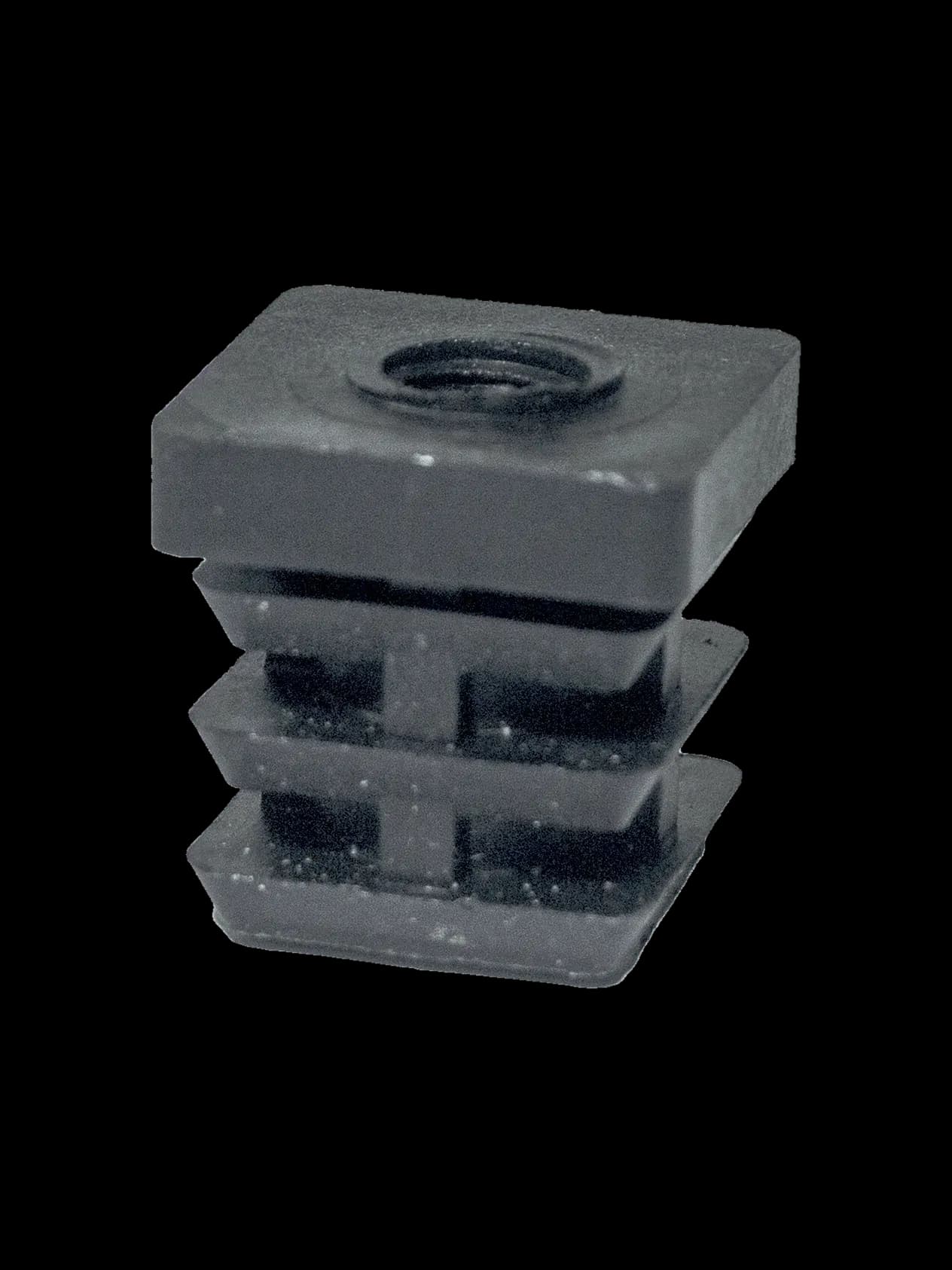

STTi-5618 Square Threaded Tube Inserts product image

M10 22x22x1.6-2mm Threaded Tube Insert (STTi-5618)

Thread
M10
Tube size
22 x 22 mm
Wall thickness
1.6-2 mm
Max static load
100 kg
Housing
PA
Thread material
—

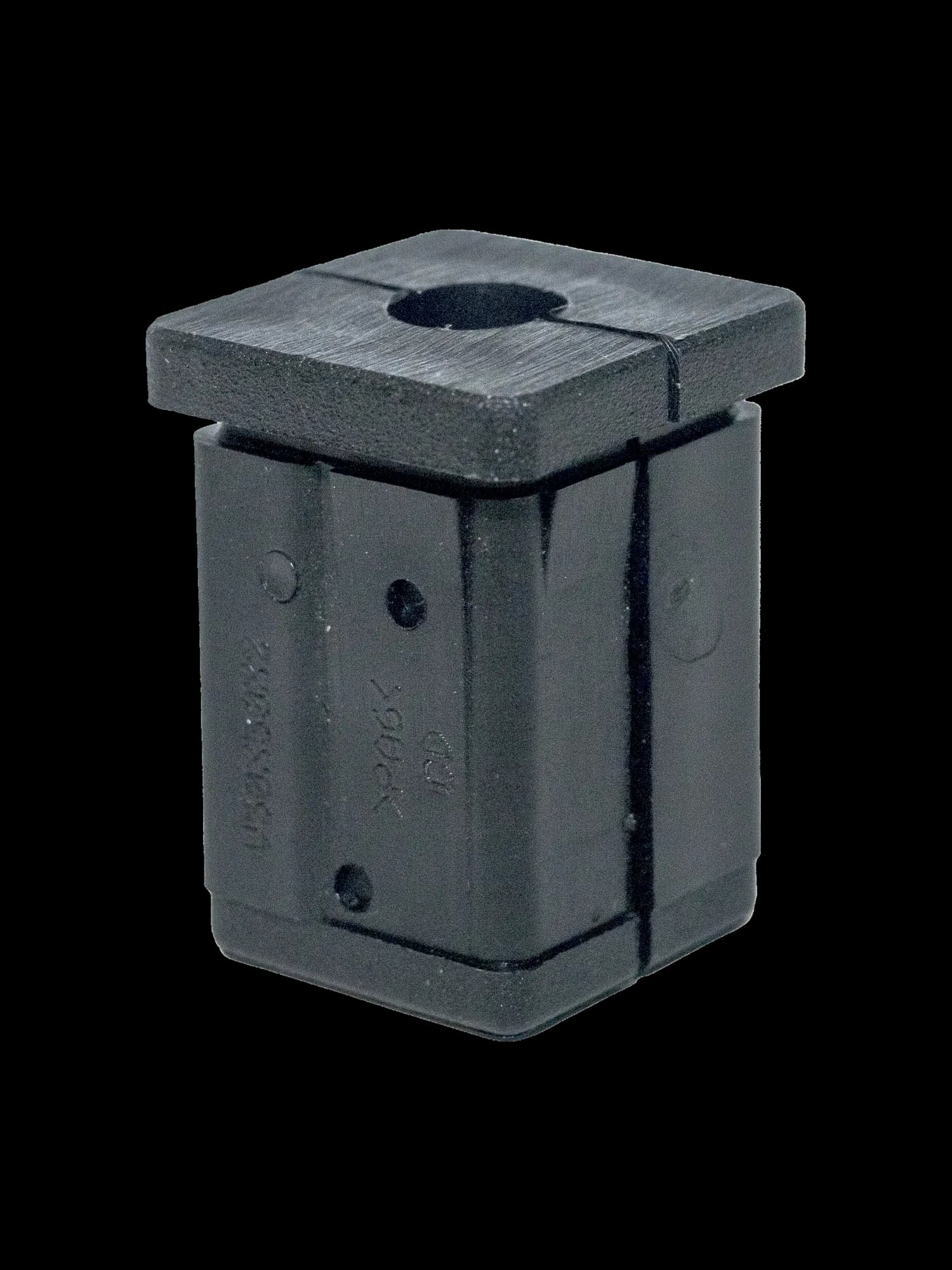

SETi-5801 Square Threaded Tube Inserts product image

M10 25x25x1.6mm Threaded Tube Insert (SETi-5801)

Thread
M10
Tube size
25 x 25 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner STTi-5853 product photo

M10 25x25x1.6-2mm Threaded Tube Insert (STTi-5853)

Thread
M10
Tube size
25 x 25 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SZTi-5621 Square Threaded Tube Inserts product image

M10 25x25x2mm Threaded Tube Insert (SZTi-5621)

Thread
M10
Tube size
25 x 25 mm
Wall thickness
2 mm
Max static load
800 kg
Housing
ZDC
Thread material
—
Flexliner SZTi-5775 product photo

M10 25x25x1.6mm Threaded Tube Insert (SZTi-5775)

Thread
M10
Tube size
25 x 25 mm
Wall thickness
1.6 mm
Max static load
800 kg
Housing
ZDC
Thread material
—
STHi-5625 Square Threaded Tube Inserts product image

M10 25.4x25.4x1.6mm Threaded Tube Insert (STHi-5625)

Thread
M10
Tube size
25.4 x 25.4 mm
Wall thickness
1.6 mm
Max static load
500 kg
Housing
MS
Thread material
—
STTi-5624 Square Threaded Tube Inserts product image

M10 25.4x25.4x1.2mm Threaded Tube Insert (STTi-5624)

Thread
M10
Tube size
25.4 x 25.4 mm
Wall thickness
1.2 mm
Max static load
350 kg
Housing
MS
Thread material
—
SETi-5810 Square Threaded Tube Inserts product image

M10 30x30x1.6mm Threaded Tube Insert (SETi-5810)

Thread
M10
Tube size
30 x 30 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner SETi-5859 product photo

M10 30x30x2mm Threaded Tube Insert (SETi-5859)

Thread
M10
Tube size
30 x 30 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STTi-5854 Square Threaded Tube Inserts product image

M10 30x30x1.6-2mm Threaded Tube Insert (STTi-5854)

Thread
M10
Tube size
30 x 30 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—

M10 30x30x2.5-3mm Threaded Tube Insert (STTi-5863)

Thread
M10
Tube size
30 x 30 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
—
STZi-5631 Square Threaded Tube Inserts product image

M10 30x30x2mm Threaded Tube Insert (STZi-5631)

Thread
M10
Tube size
30 x 30 mm
Wall thickness
2 mm
Max static load
800 kg
Housing
ZDC
Thread material
—
STZi-5632 Square Threaded Tube Inserts product image

M10 30x30x2.5mm Threaded Tube Insert (STZi-5632)

Thread
M10
Tube size
30 x 30 mm
Wall thickness
2.5 mm
Max static load
800 kg
Housing
ZDC
Thread material
—
STZi-5776 Square Threaded Tube Inserts product image

M10 30x30x1.6mm Threaded Tube Insert (STZi-5776)

Thread
M10
Tube size
30 x 30 mm
Wall thickness
1.6 mm
Max static load
800 kg
Housing
ZDC
Thread material
—

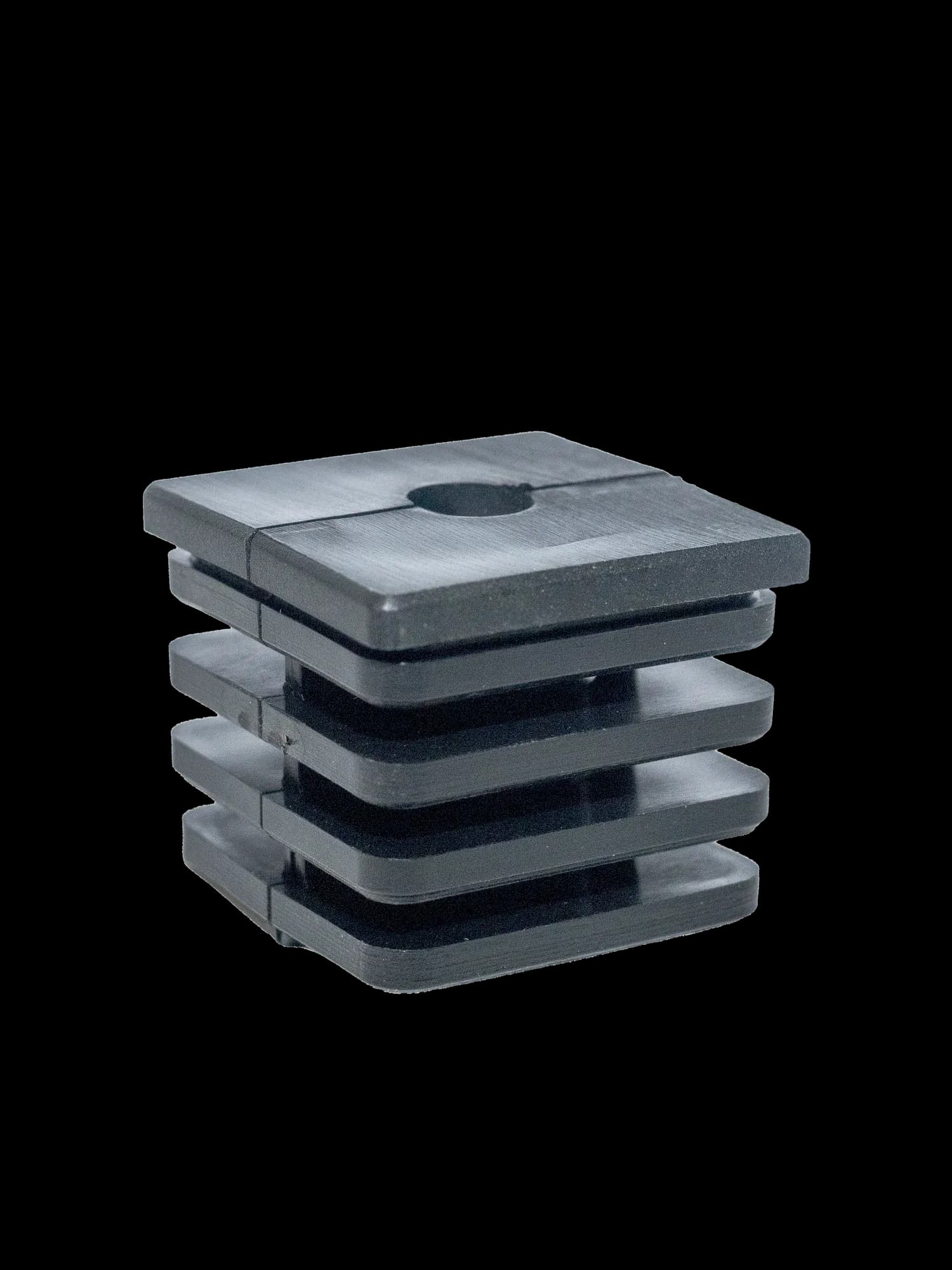

SETi-5406 Square Threaded Tube Inserts product image

M10 32x32x2mm Threaded Tube Insert (SETi-5406)

Thread
M10
Tube size
32 x 32 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5789 Square Threaded Tube Inserts product image

M10 32x32x1.2-1.6mm Threaded Tube Insert (SETi-5789)

Thread
M10
Tube size
32 x 32 mm
Wall thickness
1.2-1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP

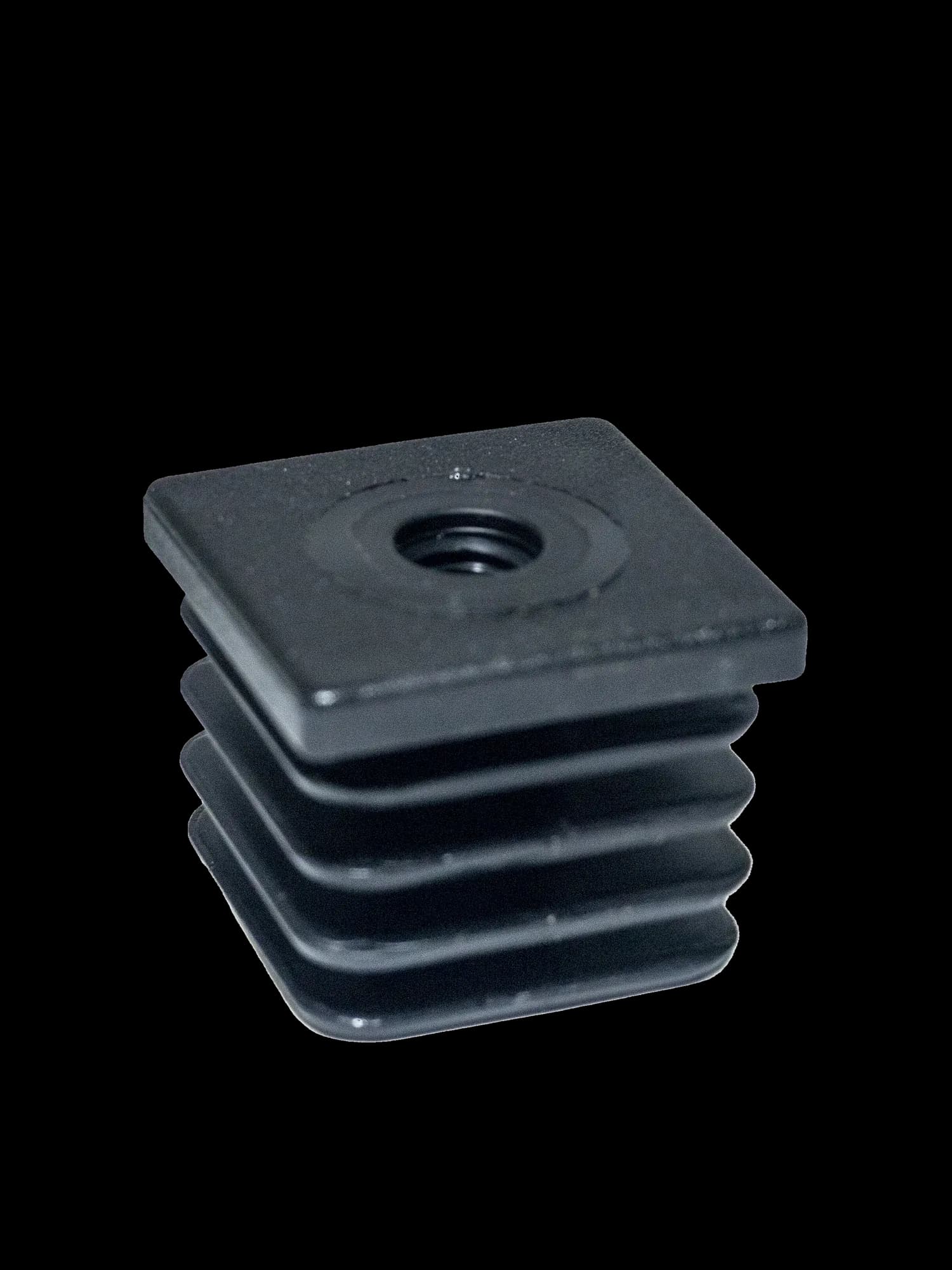

STTi-5405 Square Threaded Tube Inserts product image

M10 32x32x1.6-2mm Threaded Tube Insert (STTi-5405)

Thread
M10
Tube size
32 x 32 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
Flexliner STTi-5867 product photo

M10 32x32x1.2mm Threaded Tube Insert (STTi-5867)

Thread
M10
Tube size
32 x 32 mm
Wall thickness
1.2 mm
Max static load
250 kg
Housing
HIPS
Thread material
—
SETi-5740 Square Threaded Tube Inserts product image

M10 35x35x1.6mm Threaded Tube Insert (SETi-5740)

Thread
M10
Tube size
35 x 35 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5811 Square Threaded Tube Inserts product image

M10 35x35x2mm Threaded Tube Insert (SETi-5811)

Thread
M10
Tube size
35 x 35 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5707 Square Threaded Tube Inserts product image

M10 35x35x1.6mm Threaded Tube Insert (STHi-5707)

Thread
M10
Tube size
35 x 35 mm
Wall thickness
1.6 mm
Max static load
700 kg
Housing
PA-GF
Thread material
BrassNP
STTi-5855 Square Threaded Tube Inserts product image

M10 35x35x1.6-2mm Threaded Tube Insert (STTi-5855)

Thread
M10
Tube size
35 x 35 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5805 Square Threaded Tube Inserts product image

M10 38x38x1.6mm Threaded Tube Insert (SETi-5805)

Thread
M10
Tube size
38 x 38 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5668 Square Threaded Tube Inserts product image

M10 38x38x1.6-2mm Threaded Tube Insert (STHi-5668)

Thread
M10
Tube size
38 x 38 mm
Wall thickness
1.6-2 mm
Max static load
500 kg
Housing
PA
Thread material
MSZP
Flexliner STTi-5411 product photo

M10 38x38x1.6-2mm Threaded Tube Insert (STTi-5411)

Thread
M10
Tube size
38 x 38 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5415 Square Threaded Tube Inserts product image

M10 40x40x2mm Threaded Tube Insert (SETi-5415)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5812 Square Threaded Tube Inserts product image

M10 40x40x1.6mm Threaded Tube Insert (SETi-5812)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP

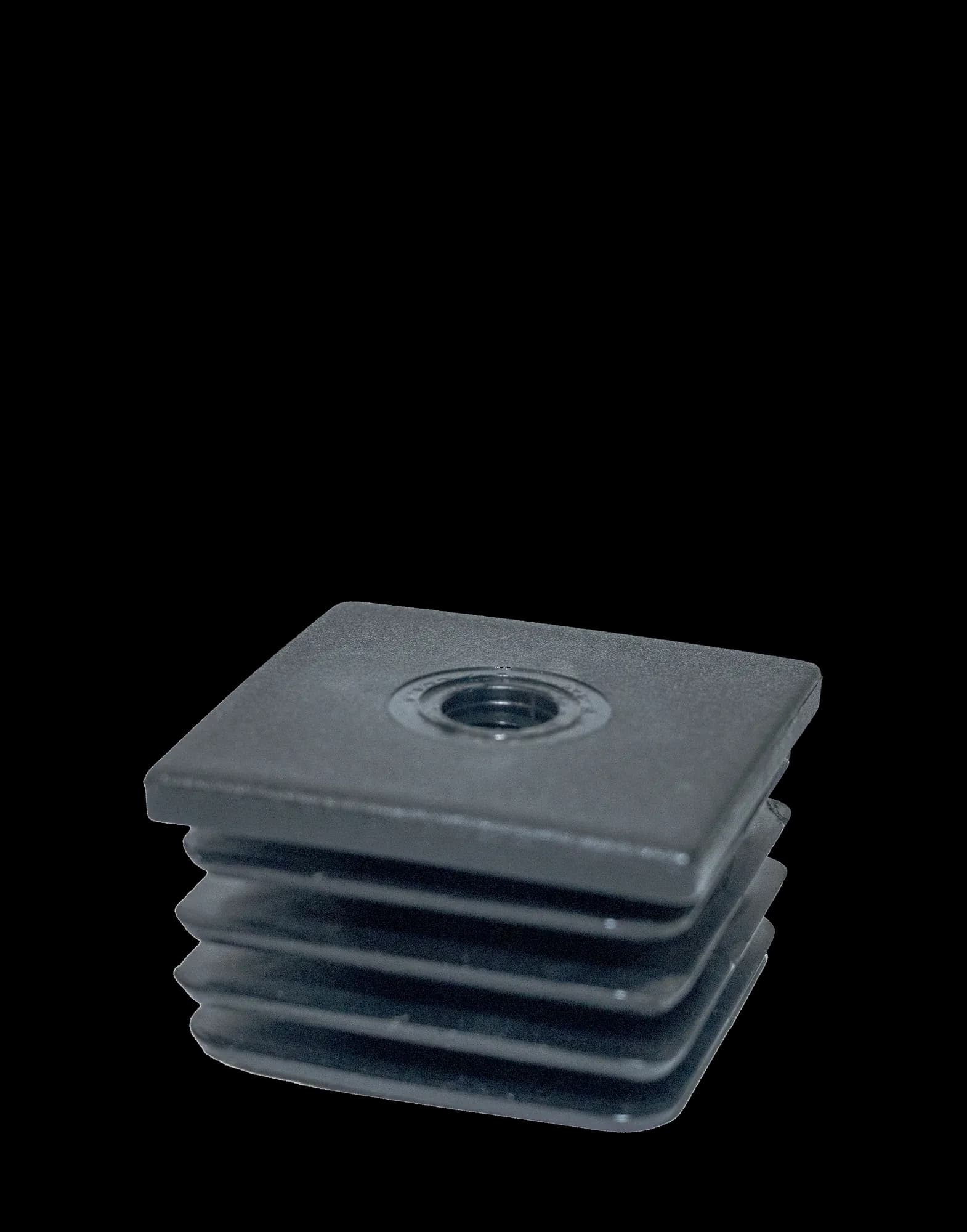

STHi-5677 Square Threaded Tube Inserts product image

M10 40x40x2.5-3mm Threaded Tube Insert (STHi-5677)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
—
STHi-5684 Square Threaded Tube Inserts product image

M10 40x40x2mm Threaded Tube Insert (STHi-5684)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STHi-5698 Square Threaded Tube Inserts product image

M10 40x40x1.6mm Threaded Tube Insert (STHi-5698)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STTi-5856 Square Threaded Tube Inserts product image

M10 40x40x1.6-2mm Threaded Tube Insert (STTi-5856)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SZTi-5416 Square Threaded Tube Inserts product image

M10 40x40x2mm Threaded Tube Insert (SZTi-5416)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
800 kg
Housing
ZDC
Thread material
—
Flexliner SZTi-5417 product photo

M10 40x40x2.5mm Threaded Tube Insert (SZTi-5417)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
2.5 mm
Max static load
500 kg
Housing
ZDC
Thread material
—
SZTi-5777 Square Threaded Tube Inserts product image

M10 40x40x1.6mm Threaded Tube Insert (SZTi-5777)

Thread
M10
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
800 kg
Housing
ZDC
Thread material
—
SETi-5779 Square Threaded Tube Inserts product image

M10 50x50x2mm Threaded Tube Insert (SETi-5779)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5795 Square Threaded Tube Inserts product image

M10 50x50x1.6mm Threaded Tube Insert (SETi-5795)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5687 Square Threaded Tube Inserts product image

M10 50x50x1.6mm Threaded Tube Insert (STHi-5687)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STHi-5688 Square Threaded Tube Inserts product image

M10 50x50x2.5-3mm Threaded Tube Insert (STHi-5688)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
—
STHi-5689 Square Threaded Tube Inserts product image

M10 50x50x2mm Threaded Tube Insert (STHi-5689)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STTi-5419 Square Threaded Tube Inserts product image

M10 50x50x2.5mm Threaded Tube Insert (STTi-5419)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
2.5 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner STTi-5857 product photo

M10 50x50x1.6-2mm Threaded Tube Insert (STTi-5857)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
1.6-2 mm
Max static load
300 kg
Housing
PA
Thread material
—
STTi-5869 Square Threaded Tube Inserts product image

M10 50x50x2mm Threaded Tube Insert (STTi-5869)

Thread
M10
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5782 Square Threaded Tube Inserts product image

M10 50.8x50.8x1.6mm Threaded Tube Insert (SETi-5782)

Thread
M10
Tube size
50.8 x 50.8 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5820 Square Threaded Tube Inserts product image

M10 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5820)

Thread
M10
Tube size
50.8 x 50.8 mm
Wall thickness
1.6-2 mm
Max static load
750 kg
Housing
PA
Thread material
MSZP

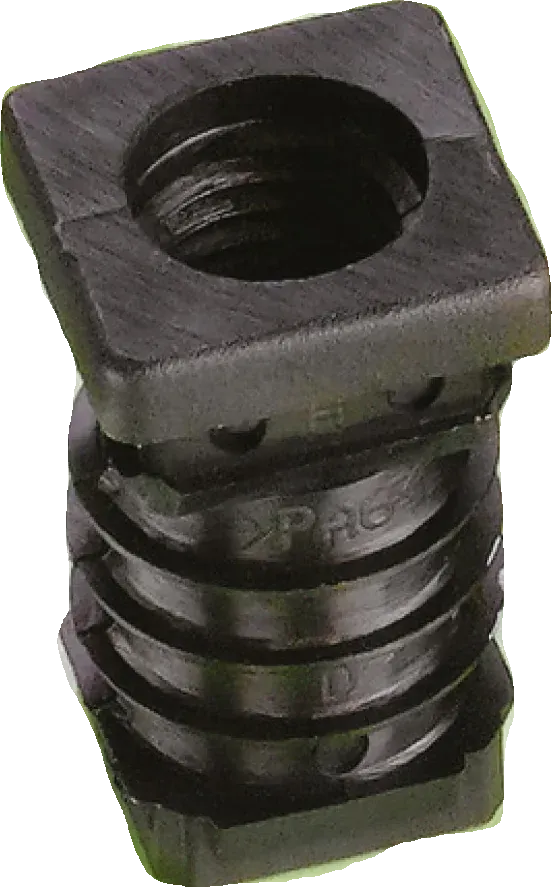

Flexliner STTi-5616 product photo

M12 20x20x1.6-2mm Threaded Tube Insert (STTi-5616)

Thread
M12
Tube size
20 x 20 mm
Wall thickness
1.6-2 mm
Max static load
100 kg
Housing
PA
Thread material
—
STTi-5619 Square Threaded Tube Inserts product image

M12 22x22x1.6-2mm Threaded Tube Insert (STTi-5619)

Thread
M12
Tube size
22 x 22 mm
Wall thickness
1.6-2 mm
Max static load
150 kg
Housing
PA
Thread material
—
Flexliner SETi-5802 product photo

M12 25x25x1.6mm Threaded Tube Insert (SETi-5802)

Thread
M12
Tube size
25 x 25 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5675 Square Threaded Tube Inserts product image

M12 25x25x1.6mm Threaded Tube Insert (STHi-5675)

Thread
M12
Tube size
25 x 25 mm
Wall thickness
1.6 mm
Max static load
550 kg
Housing
PA-GF
Thread material
BrassNP
STTi-5626 Square Threaded Tube Inserts product image

M12 25x25x1.6-2mm Threaded Tube Insert (STTi-5626)

Thread
M12
Tube size
25 x 25 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5425 Square Threaded Tube Inserts product image

M12 25.4x25.4x1.6-2mm Threaded Tube Insert (STTi-5425)

Thread
M12
Tube size
25.4 x 25.4 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5821 Square Threaded Tube Inserts product image

M12 30x30x1.6mm Threaded Tube Insert (SETi-5821)

Thread
M12
Tube size
30 x 30 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5678 Square Threaded Tube Inserts product image

M12 30x30x1.6mm Threaded Tube Insert (STHi-5678)

Thread
M12
Tube size
30 x 30 mm
Wall thickness
1.6 mm
Max static load
550 kg
Housing
PA-GF
Thread material
BrassNP

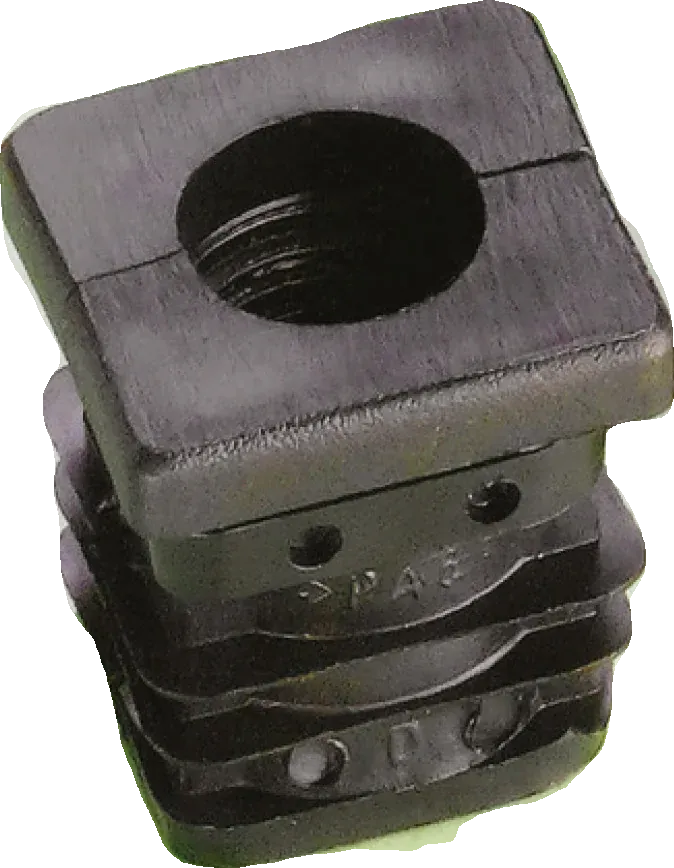

Flexliner STTi-5633 product photo

M12 30x30x1.6-2mm Threaded Tube Insert (STTi-5633)

Thread
M12
Tube size
30 x 30 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5634 Square Threaded Tube Inserts product image

M12 30x30x2-2.5mm Threaded Tube Insert (STTi-5634)

Thread
M12
Tube size
30 x 30 mm
Wall thickness
2-2.5 mm
Max static load
200 kg
Housing
PA
Thread material
—

M12 30x30x2mm Threaded Tube Insert (SZTi-5635)

Thread
M12
Tube size
30 x 30 mm
Wall thickness
2 mm
Max static load
800 kg
Housing
ZDC
Thread material
—

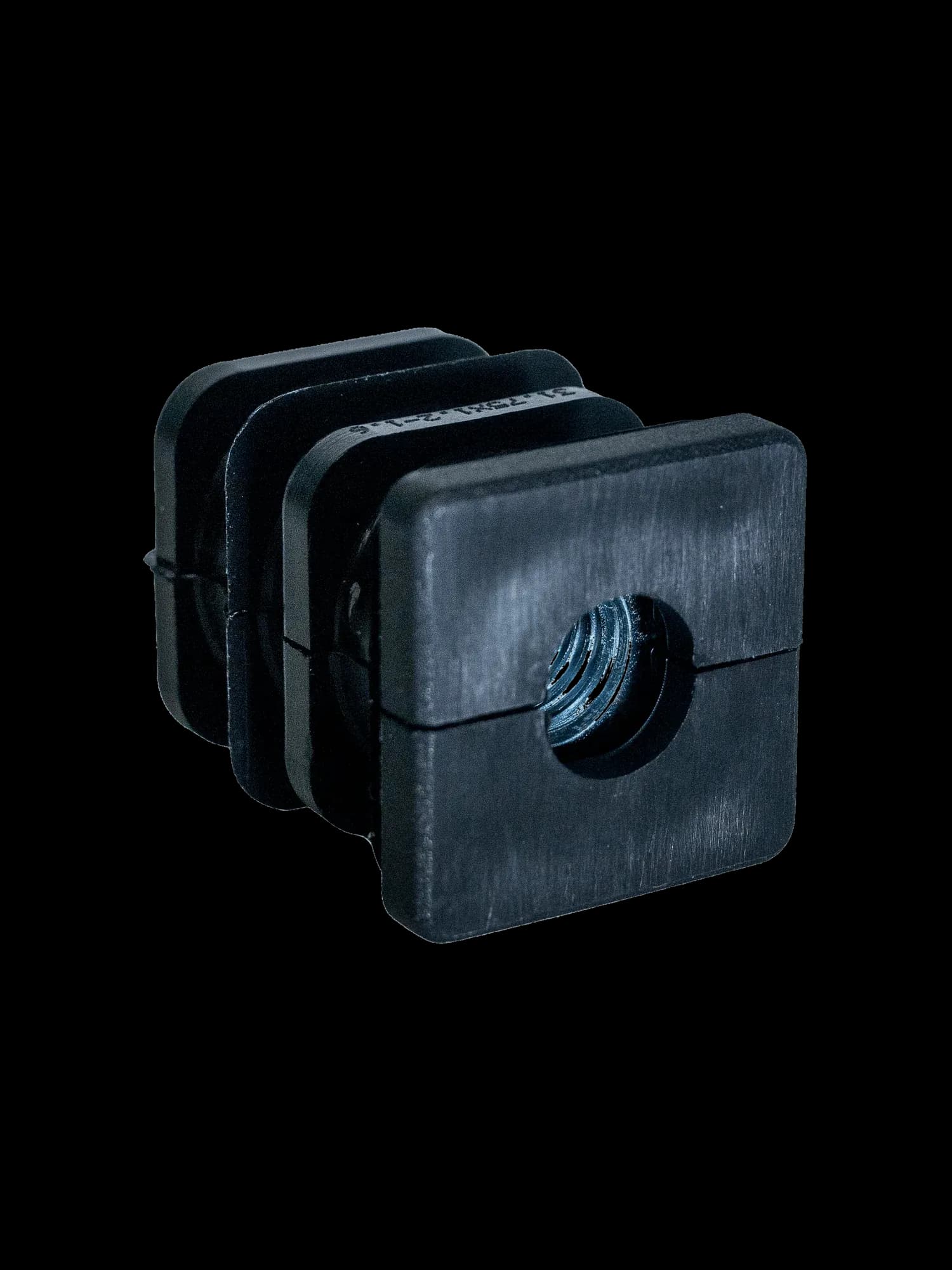

Flexliner SETi-5804 product photo

M12 32x32x1.6mm Threaded Tube Insert (SETi-5804)

Thread
M12
Tube size
32 x 32 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STTi-5407 Square Threaded Tube Inserts product image

M12 32x32x1.6-2mm Threaded Tube Insert (STTi-5407)

Thread
M12
Tube size
32 x 32 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5739 Square Threaded Tube Inserts product image

M12 35x35x1.6mm Threaded Tube Insert (SETi-5739)

Thread
M12
Tube size
35 x 35 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5784 Square Threaded Tube Inserts product image

M12 35x35x2mm Threaded Tube Insert (SETi-5784)

Thread
M12
Tube size
35 x 35 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5708 Square Threaded Tube Inserts product image

M12 35x35x1.6mm Threaded Tube Insert (STHi-5708)

Thread
M12
Tube size
35 x 35 mm
Wall thickness
1.6 mm
Max static load
750 kg
Housing
PA-GF
Thread material
BrassNP
STTi-5409 Square Threaded Tube Inserts product image

M12 35x35x1.6-2mm Threaded Tube Insert (STTi-5409)

Thread
M12
Tube size
35 x 35 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5807 Square Threaded Tube Inserts product image

M12 38x38x1.6mm Threaded Tube Insert (SETi-5807)

Thread
M12
Tube size
38 x 38 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP

M12 38x38x1.6-2mm Threaded Tube Insert (STHi-5667)

Thread
M12
Tube size
38 x 38 mm
Wall thickness
1.6-2 mm
Max static load
500 kg
Housing
PA
Thread material
MSZP
STTi-5412 Square Threaded Tube Inserts product image

M12 38x38x1.6-2mm Threaded Tube Insert (STTi-5412)

Thread
M12
Tube size
38 x 38 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
STTi-5871 Square Threaded Tube Inserts product image

M12 38x38x2.5mm Threaded Tube Insert (STTi-5871)

Thread
M12
Tube size
38 x 38 mm
Wall thickness
2.5 mm
Max static load
300 kg
Housing
HIPS
Thread material
HIPS
SETi-5423 Square Threaded Tube Inserts product image

M12 40x40x2mm Threaded Tube Insert (SETi-5423)

Thread
M12
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5783 Square Threaded Tube Inserts product image

M12 40x40x1.6mm Threaded Tube Insert (SETi-5783)

Thread
M12
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5681 Square Threaded Tube Inserts product image

M12 40x40x2.5-3mm Threaded Tube Insert (STHi-5681)

Thread
M12
Tube size
40 x 40 mm
Wall thickness
2.5-3 mm
Max static load
200 kg
Housing
PA
Thread material
—
STHi-5682 Square Threaded Tube Inserts product image

M12 40x40x1.6mm Threaded Tube Insert (STHi-5682)

Thread
M12
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP

M12 40x40x2mm Threaded Tube Insert (STHi-5685)

Thread
M12
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STTi-5418 Square Threaded Tube Inserts product image

M12 40x40x1.6-2mm Threaded Tube Insert (STTi-5418)

Thread
M12
Tube size
40 x 40 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5786 Square Threaded Tube Inserts product image

M12 50x50x2mm Threaded Tube Insert (SETi-5786)

Thread
M12
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
Flexliner SETi-5796 product photo

M12 50x50x1.6mm Threaded Tube Insert (SETi-5796)

Thread
M12
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
SETi-5798 Square Threaded Tube Inserts product image

M12 50x50x2.5-3mm Threaded Tube Insert (SETi-5798)

Thread
M12
Tube size
50 x 50 mm
Wall thickness
2.5-3 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5690 Square Threaded Tube Inserts product image

M12 50x50x1.6mm Threaded Tube Insert (STHi-5690)

Thread
M12
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STHi-5692 Square Threaded Tube Inserts product image

M12 50x50x2mm Threaded Tube Insert (STHi-5692)

Thread
M12
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
1000 kg
Housing
PA
Thread material
MSZP
STTi-5420 Square Threaded Tube Inserts product image

M12 50x50x1.6-2mm Threaded Tube Insert (STTi-5420)

Thread
M12
Tube size
50 x 50 mm
Wall thickness
1.6-2 mm
Max static load
200 kg
Housing
PA
Thread material
—
SETi-5794 Square Threaded Tube Inserts product image

M12 50.8x50.8x1.6mm Threaded Tube Insert (SETi-5794)

Thread
M12
Tube size
50.8 x 50.8 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
MSZP
STHi-5822 Square Threaded Tube Inserts product image

M12 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5822)

Thread
M12
Tube size
50.8 x 50.8 mm
Wall thickness
1.6-2 mm
Max static load
750 kg
Housing
PA
Thread material
MSZP
STHi-5706 Square Threaded Tube Inserts product image

M14 30x30x1.6mm Threaded Tube Insert (STHi-5706)

Thread
M14
Tube size
30 x 30 mm
Wall thickness
1.6 mm
Max static load
600 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5709 Square Threaded Tube Inserts product image

M14 35x35x1.6mm Threaded Tube Insert (STHi-5709)

Thread
M14
Tube size
35 x 35 mm
Wall thickness
1.6 mm
Max static load
800 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5716 Square Threaded Tube Inserts product image

M14 40x40x1.6mm Threaded Tube Insert (STHi-5716)

Thread
M14
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
850 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5717 Square Threaded Tube Inserts product image

M14 40x40x2mm Threaded Tube Insert (STHi-5717)

Thread
M14
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
850 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5722 Square Threaded Tube Inserts product image

M14 50x50x1.6mm Threaded Tube Insert (STHi-5722)

Thread
M14
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
850 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5723 Square Threaded Tube Inserts product image

M14 50x50x2mm Threaded Tube Insert (STHi-5723)

Thread
M14
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
850 kg
Housing
PA-GF
Thread material
BrassNP
Flexliner STTi-5627 product photo

M16 25x25x1.6-2mm Threaded Tube Insert (STTi-5627)

Thread
M16
Tube size
25 x 25 mm
Wall thickness
1.6-2 mm
Max static load
150 kg
Housing
PA
Thread material
—

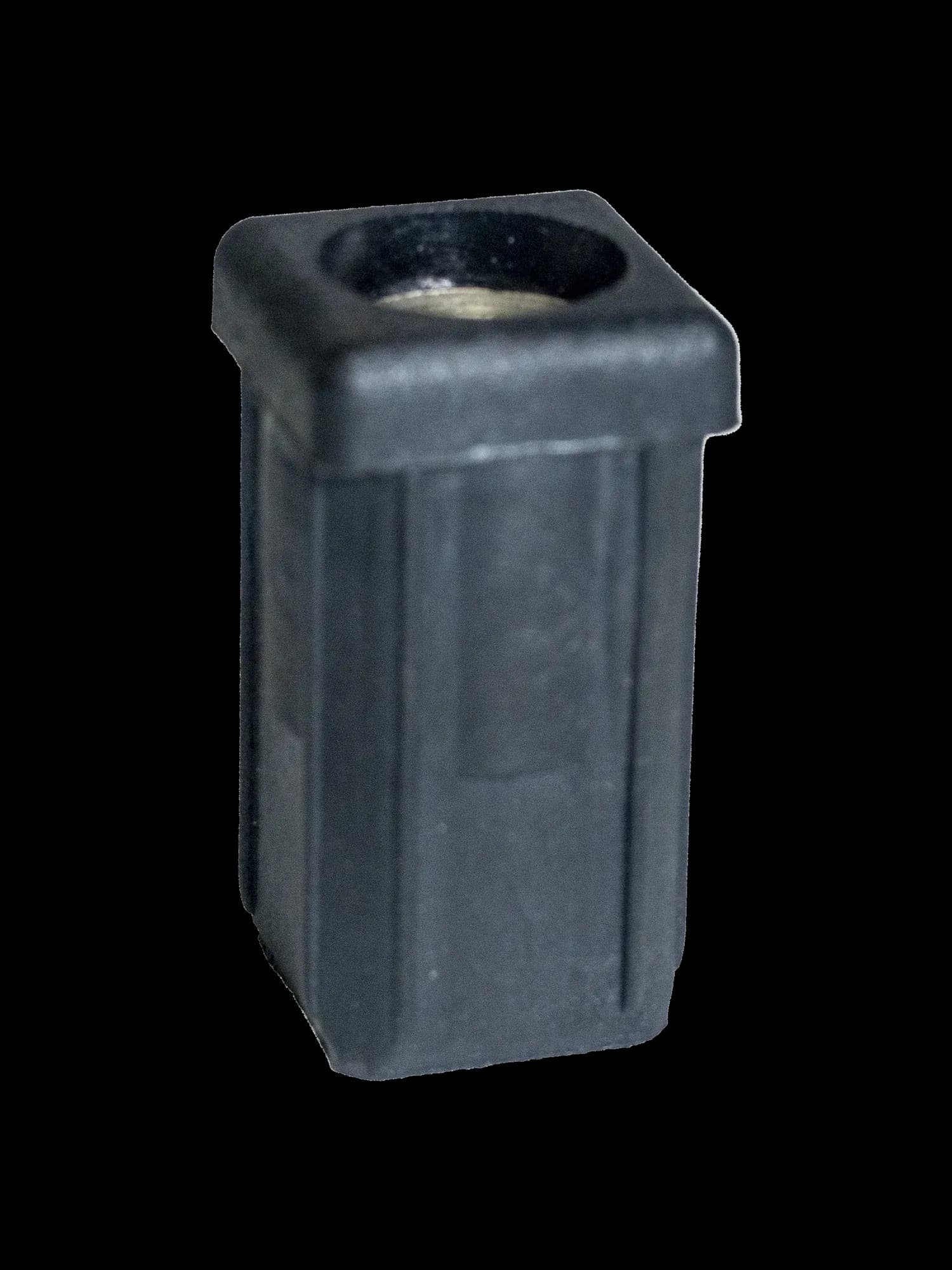

Flexliner STTS-5803 product photo

M16 25x25x1.6-2mm Threaded Tube Insert (STTS-5803)

Thread
M16
Tube size
25 x 25 mm
Wall thickness
1.6-2 mm
Max static load
250 kg
Housing
PA
Thread material
MSZP

M16 25.4x25.4x1.6mm Threaded Tube Insert (STTi-5426)

Thread
M16
Tube size
25.4 x 25.4 mm
Wall thickness
1.6 mm
Max static load
300 kg
Housing
PA
Thread material
—
STHi-5679 Square Threaded Tube Inserts product image

M16 30x30x1.6mm Threaded Tube Insert (STHi-5679)

Thread
M16
Tube size
30 x 30 mm
Wall thickness
1.6 mm
Max static load
650 kg
Housing
PA-GF
Thread material
BrassNP
STTi-5636 Square Threaded Tube Inserts product image

M16 30x30x1.6-2mm Threaded Tube Insert (STTi-5636)

Thread
M16
Tube size
30 x 30 mm
Wall thickness
1.6-2 mm
Max static load
150 kg
Housing
PA
Thread material
—

M16 30x30x3mm Threaded Tube Insert (STTi-5637)

Thread
M16
Tube size
30 x 30 mm
Wall thickness
3 mm
Max static load
150 kg
Housing
PA
Thread material
—
STTi-5806 Square Threaded Tube Inserts product image

M16 32x32x1.6-2mm Threaded Tube Insert (STTi-5806)

Thread
M16
Tube size
32 x 32 mm
Wall thickness
1.6-2 mm
Max static load
350 kg
Housing
PA
Thread material
SS304
STHi-5710 Square Threaded Tube Inserts product image

M16 35x35x1.6mm Threaded Tube Insert (STHi-5710)

Thread
M16
Tube size
35 x 35 mm
Wall thickness
1.6 mm
Max static load
850 kg
Housing
PA-GF
Thread material
BrassNP
Flexliner STHi-5809 product photo

M16 38x38x1.6-2mm Threaded Tube Insert (STHi-5809)

Thread
M16
Tube size
38 x 38 mm
Wall thickness
1.6-2 mm
Max static load
400 kg
Housing
PA
Thread material
MSZP
STHi-5670 Square Threaded Tube Inserts product image

M16 40x40x2mm Threaded Tube Insert (STHi-5670)

Thread
M16
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
800 kg
Housing
PA
Thread material
BrassNP
STHi-5683 Square Threaded Tube Inserts product image

M16 40x40x1.6mm Threaded Tube Insert (STHi-5683)

Thread
M16
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
900 kg
Housing
PA-GF
Thread material
Brass

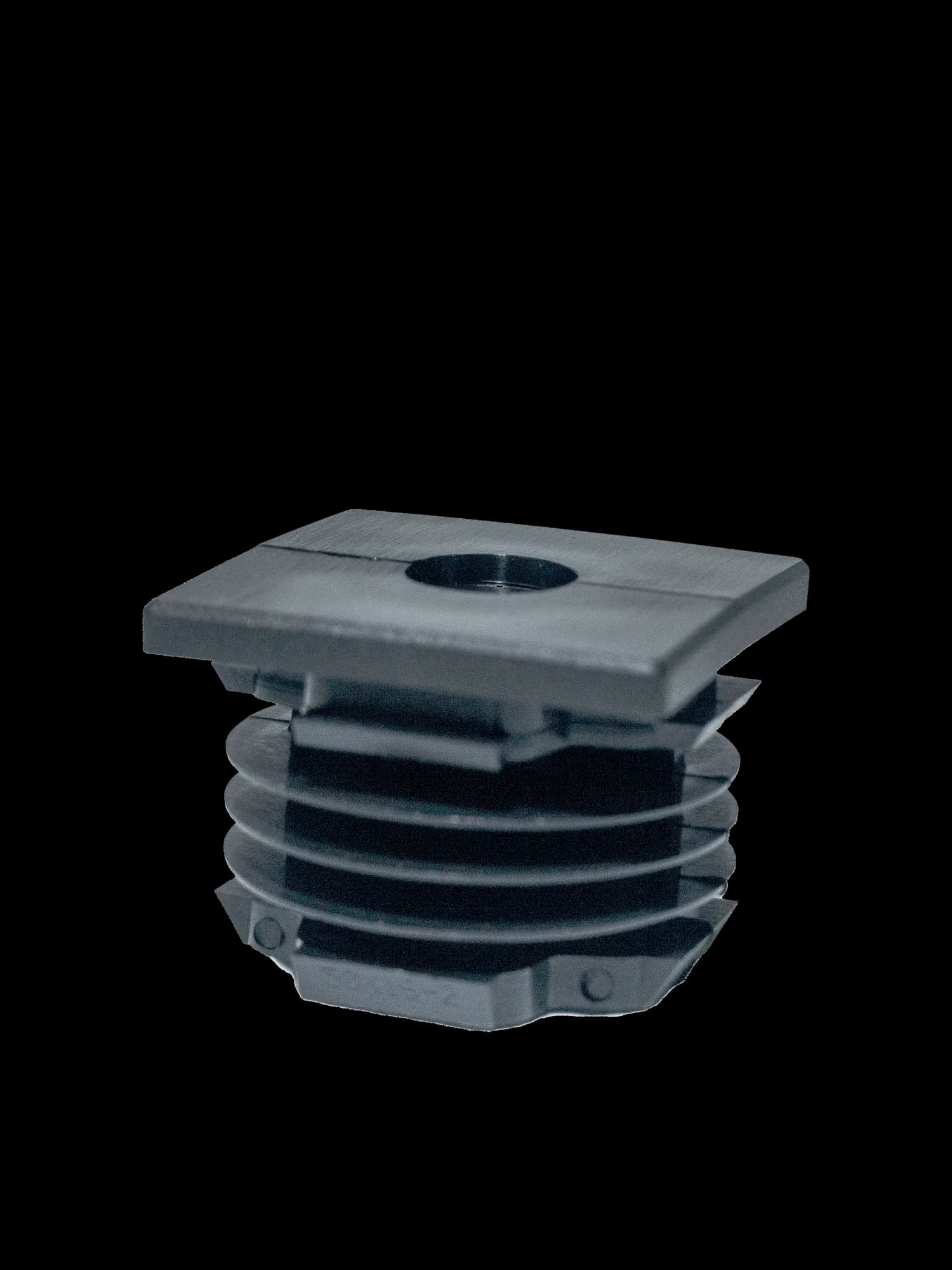

STTi-5424 Square Threaded Tube Inserts product image

M16 40x40x1.6-2mm Threaded Tube Insert (STTi-5424)

Thread
M16
Tube size
40 x 40 mm
Wall thickness
1.6-2 mm
Max static load
150 kg
Housing
PA
Thread material
—
STHi-5691 Square Threaded Tube Inserts product image

M16 50x50x1.6mm Threaded Tube Insert (STHi-5691)

Thread
M16
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
900 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5693 Square Threaded Tube Inserts product image

M16 50x50x2.5mm Threaded Tube Insert (STHi-5693)

Thread
M16
Tube size
50 x 50 mm
Wall thickness
2.5 mm
Max static load
950 kg
Housing
PA-GF
Thread material
BrassNP
Flexliner STHi-5724 product photo

M16 50x50x2mm Threaded Tube Insert (STHi-5724)

Thread
M16
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
950 kg
Housing
PA-GF
Thread material
BrassNP
Flexliner STTi-5799 product photo

M16 50x50x1.6-2mm Threaded Tube Insert (STTi-5799)

Thread
M16
Tube size
50 x 50 mm
Wall thickness
1.6-2 mm
Max static load
150 kg
Housing
PA
Thread material
PA
Flexliner STHi-5814 product photo

M16 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5814)

Thread
M16
Tube size
50.8 x 50.8 mm
Wall thickness
1.6-2 mm
Max static load
750 kg
Housing
PA
Thread material
MSZP
STTi-5427 Square Threaded Tube Inserts product image

M20 32x32x1.6-2mm Threaded Tube Insert (STTi-5427)

Thread
M20
Tube size
32 x 32 mm
Wall thickness
1.6-2 mm
Max static load
500 kg
Housing
PA
Thread material
—
STHi-5713 Square Threaded Tube Inserts product image

M20 35x35x1.6mm Threaded Tube Insert (STHi-5713)

Thread
M20
Tube size
35 x 35 mm
Wall thickness
1.6 mm
Max static load
900 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5879 Square Threaded Tube Inserts product image

M20 38x38x1.6mm Threaded Tube Insert (STHi-5879)

Thread
M20
Tube size
38 x 38 mm
Wall thickness
1.6 mm
Max static load
500 kg
Housing
PA
Thread material
MSZP

M20 40x40x2mm Threaded Tube Insert (STHi-5671)

Thread
M20
Tube size
40 x 40 mm
Wall thickness
2 mm
Max static load
800 kg
Housing
PA
Thread material
BrassNP
STHi-5718 Square Threaded Tube Inserts product image

M20 40x40x1.6mm Threaded Tube Insert (STHi-5718)

Thread
M20
Tube size
40 x 40 mm
Wall thickness
1.6 mm
Max static load
950 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5725 Square Threaded Tube Inserts product image

M20 50x50x2mm Threaded Tube Insert (STHi-5725)

Thread
M20
Tube size
50 x 50 mm
Wall thickness
2 mm
Max static load
900 kg
Housing
PA-GF
Thread material
BrassNP
STHi-5800 Square Threaded Tube Inserts product image

M20 50x50x1.6mm Threaded Tube Insert (STHi-5800)

Thread
M20
Tube size
50 x 50 mm
Wall thickness
1.6 mm
Max static load
950 kg
Housing
PA-GF
Thread material
BrassNP

M20 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5728)

Thread
M20
Tube size
50.8 x 50.8 mm
Wall thickness
1.6-2 mm
Max static load
750 kg
Housing
PA
Thread material
SS304
Flexliner STHi-5818 product photo

M20 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5818)

Thread
M20
Tube size
50.8 x 50.8 mm
Wall thickness
1.6-2 mm
Max static load
750 kg
Housing
PA
Thread material
Brass

How to choose Square Threaded Tube Inserts

148 products
  • Compare thread sizes, tube sizes, load ratings before requesting pricing.
  • Use the range and related product links to move between close alternatives without relying on filter-only URLs.
  • Send Flexliner the part number and quantity when the shortlist is ready for quote confirmation.

Applications and Quote Prep

  • Square Threaded Tube Inserts are used where buyers need repeatable support, levelling, tube finishing, or machine setup from a known part number.
  • The visible product table supports quoting by keeping commercial identifiers and selection specs on the page.

Related Ranges

Round Threaded Tube Inserts

110 products

Round threaded tube inserts for 100 - 300kg max load.

Rectangle Threaded Tube Inserts

29 products

Rectangle threaded tube inserts for 75-900kg maximum loads.

Heavy Duty Square Threaded Tube Inserts

58 products

Heavy duty square threaded tube inserts for 350 - 1,000kg max load.

Heavy Duty Round Threaded Tube Inserts

15 products

Heavy duty round threaded tube inserts for 350 - 900kg max load.
