Threaded Tube Inserts
Heavy Duty Round Threaded Tube Inserts
Heavy duty round threaded tube inserts for 350 - 900kg max load.
Need help choosing?
Tell us the load, thread length, thread size, base diameter, tilt type, and material.
Showing 15 of 15 products
M10 25x1.6mm Threaded Tube Insert (RTHi-5665)
- Thread
- M10
- Tube size
- 25 mm
- Wall thickness
- 1.6 mm
- Max static load
- 500 kg
- Housing
- MS
- Thread material
- —
M10 32x2mm Threaded Tube Insert (RZTi-5767)
- Thread
- M10
- Tube size
- 32 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —

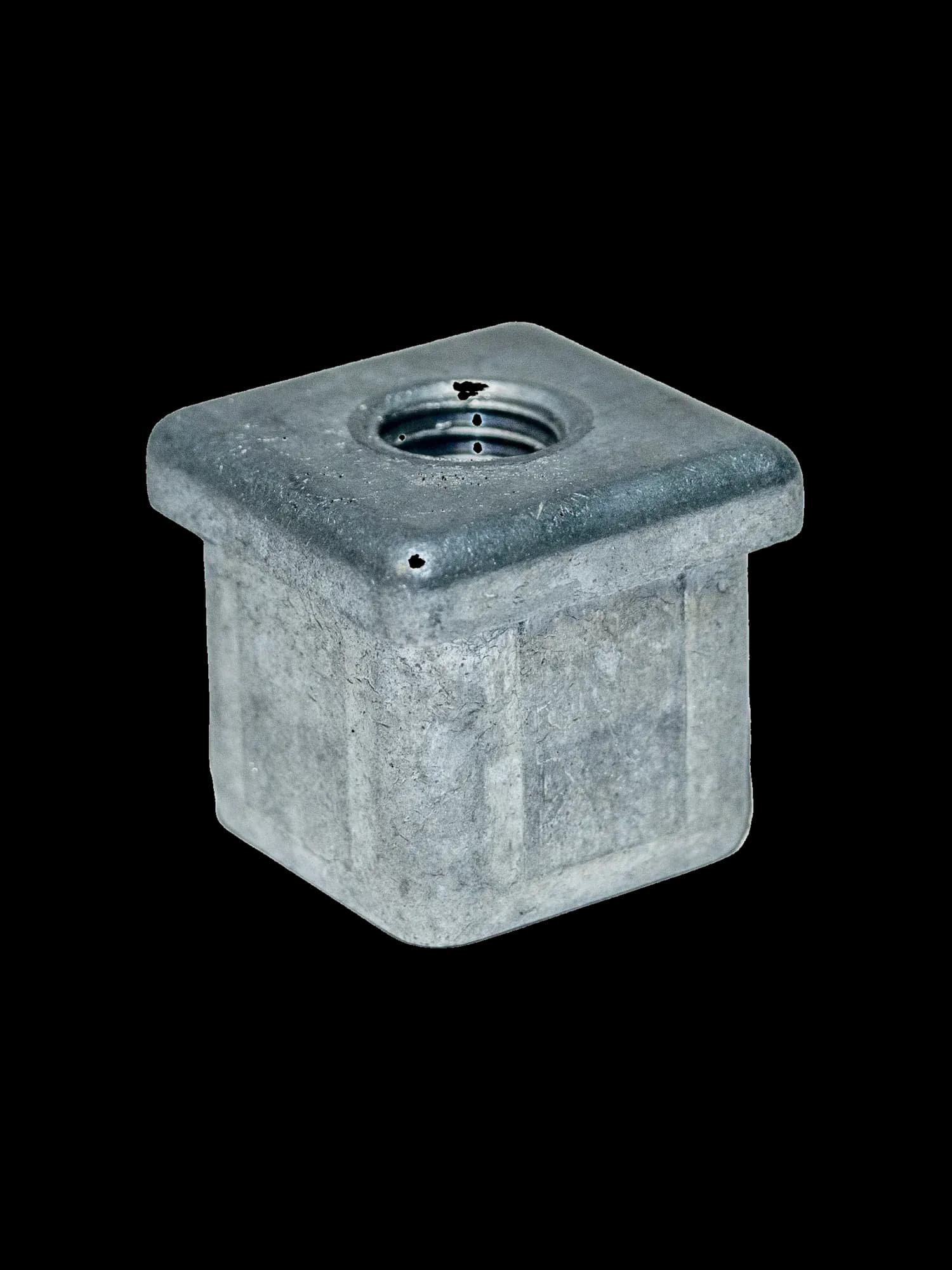

M10 32x1.6mm Threaded Tube Insert (RZTi-5773)
- Thread
- M10
- Tube size
- 32 mm
- Wall thickness
- 1.6 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 38x2mm Threaded Tube Insert (RZTi-5766)
- Thread
- M10
- Tube size
- 38 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 38x1.6mm Threaded Tube Insert (RZTi-5774)
- Thread
- M10
- Tube size
- 38 mm
- Wall thickness
- 1.6 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —

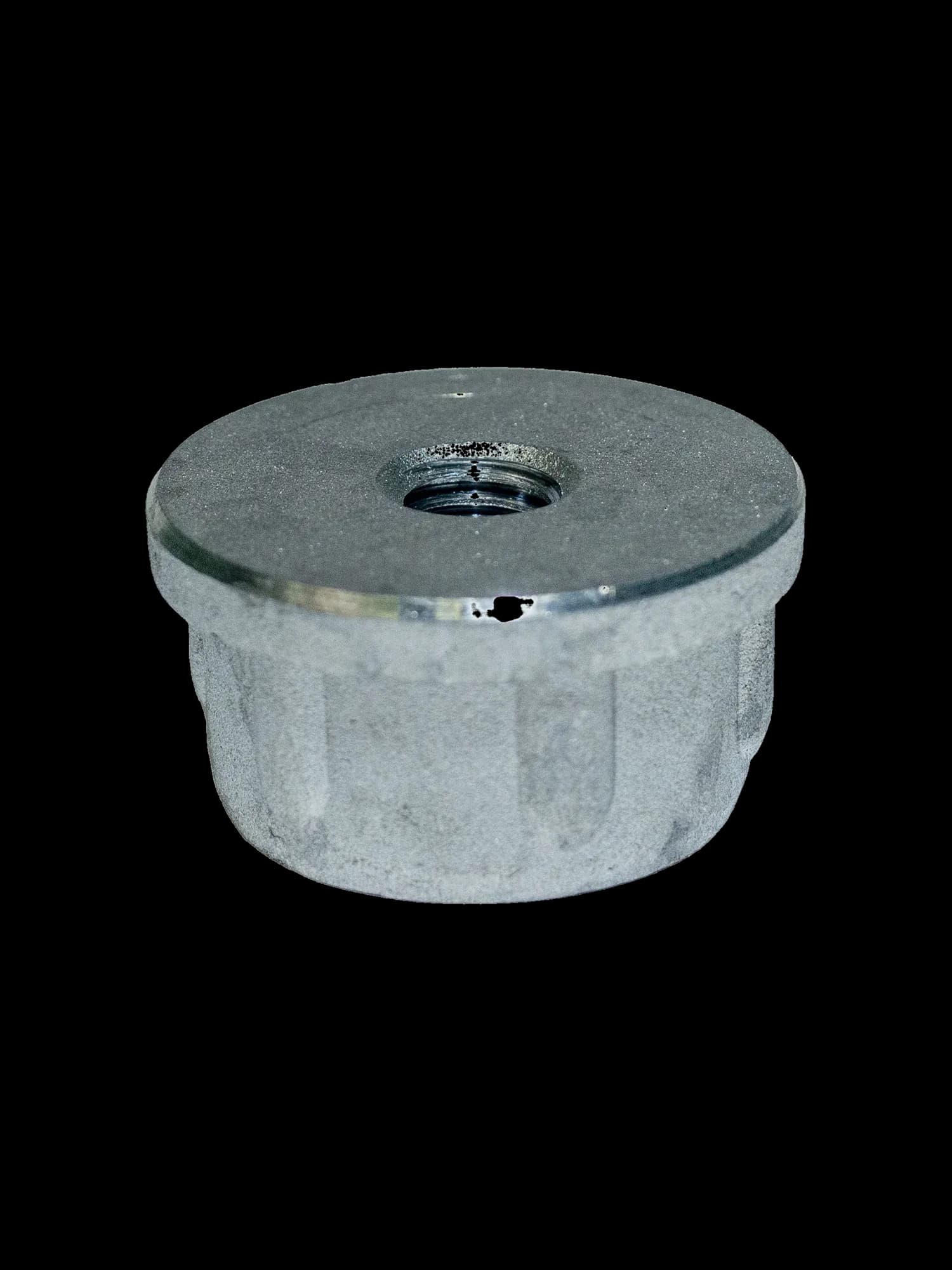

M10 60-60.3x2mm Threaded Tube Insert (RZTi-5726)
- Thread
- M10
- Tube size
- 60-60.3 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —

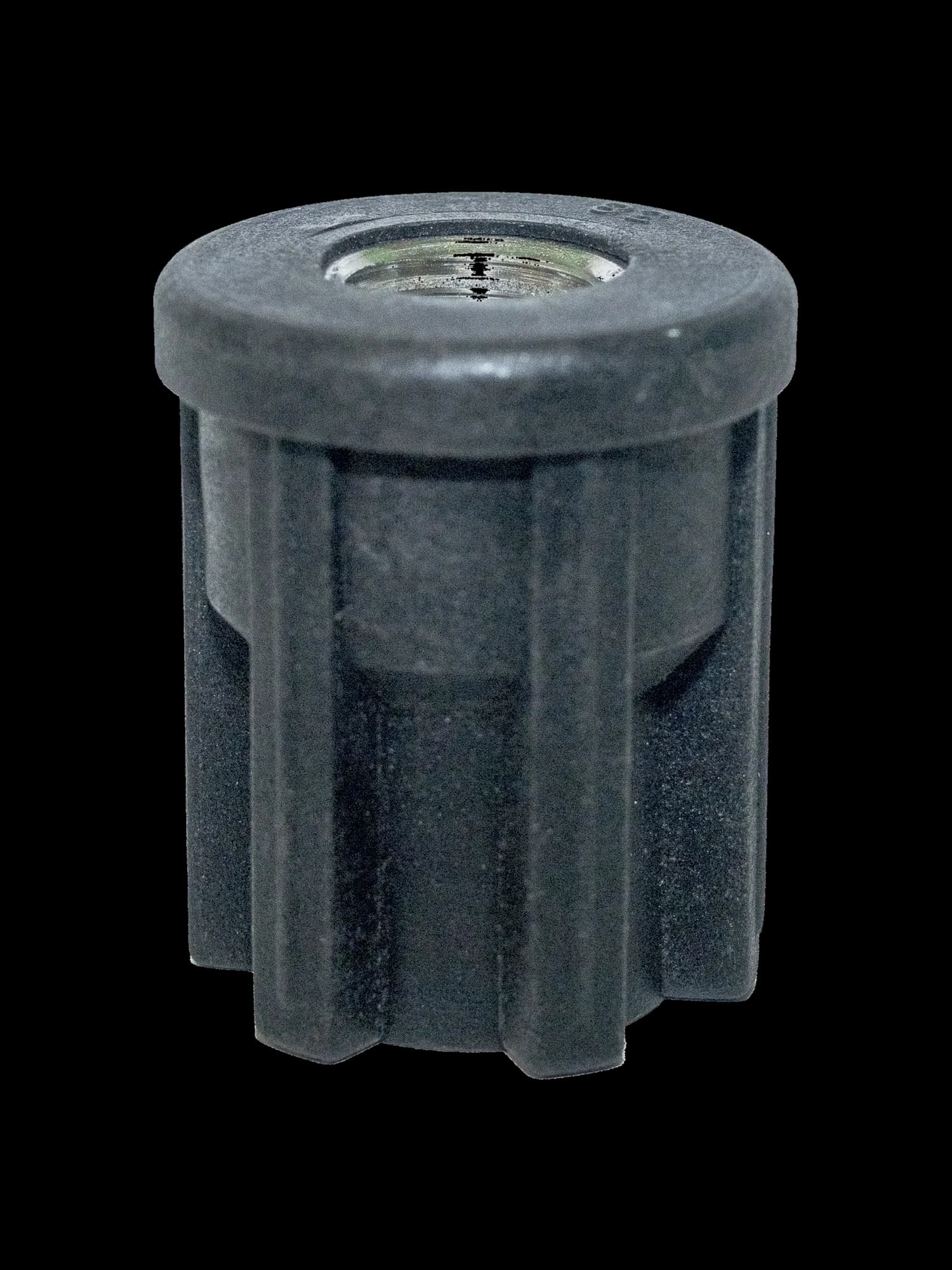

M12 38x1.6mm Threaded Tube Insert (RTHi-5695)
- Thread
- M12
- Tube size
- 38 mm
- Wall thickness
- 1.6 mm
- Max static load
- 550 kg
- Housing
- PA-GF
- Thread material
- Brass
M12 38x2mm Threaded Tube Insert (RTHi-6456)
- Thread
- M12
- Tube size
- 38 mm
- Wall thickness
- 2 mm
- Max static load
- 500 kg
- Housing
- PA
- Thread material
- —

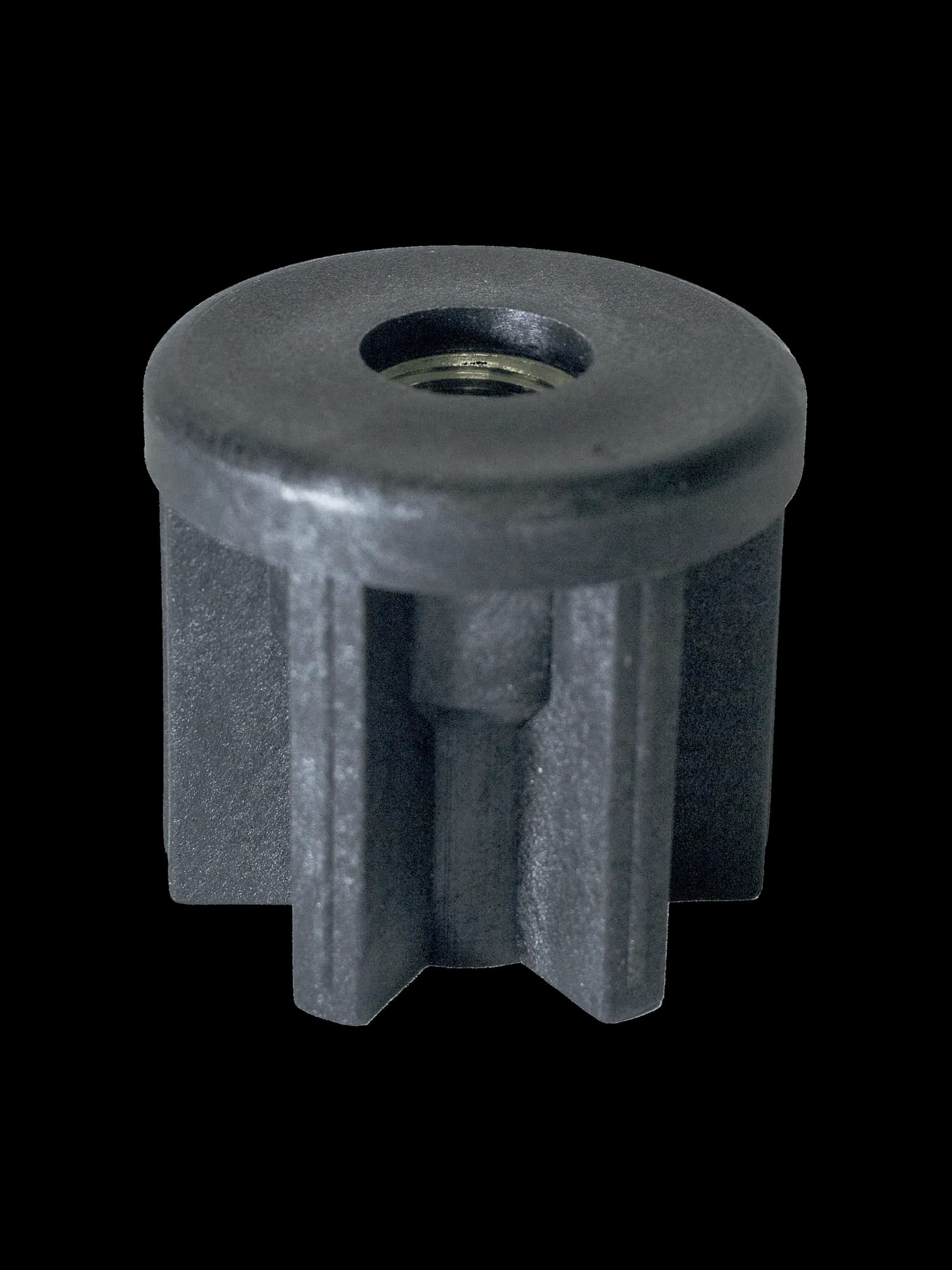

M12 50x1.6mm Threaded Tube Insert (RTHi-5654)
- Thread
- M12
- Tube size
- 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 850 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M12 50.8x1.6-2mm Threaded Tube Insert (RTHi-5876)
- Thread
- M12
- Tube size
- 50.8 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 450 kg
- Housing
- PA-GF
- Thread material
- SS304
M12 60.3x2.5mm Threaded Tube Insert (RTHi-6466)
- Thread
- M12
- Tube size
- 60.3 mm
- Wall thickness
- 2.5 mm
- Max static load
- 800 kg
- Housing
- PA-GF
- Thread material
- Brass
M16 38x1.6mm Threaded Tube Insert (RTHi-5697)
- Thread
- M16
- Tube size
- 38 mm
- Wall thickness
- 1.6 mm
- Max static load
- 650 kg
- Housing
- PA-GF
- Thread material
- Brass

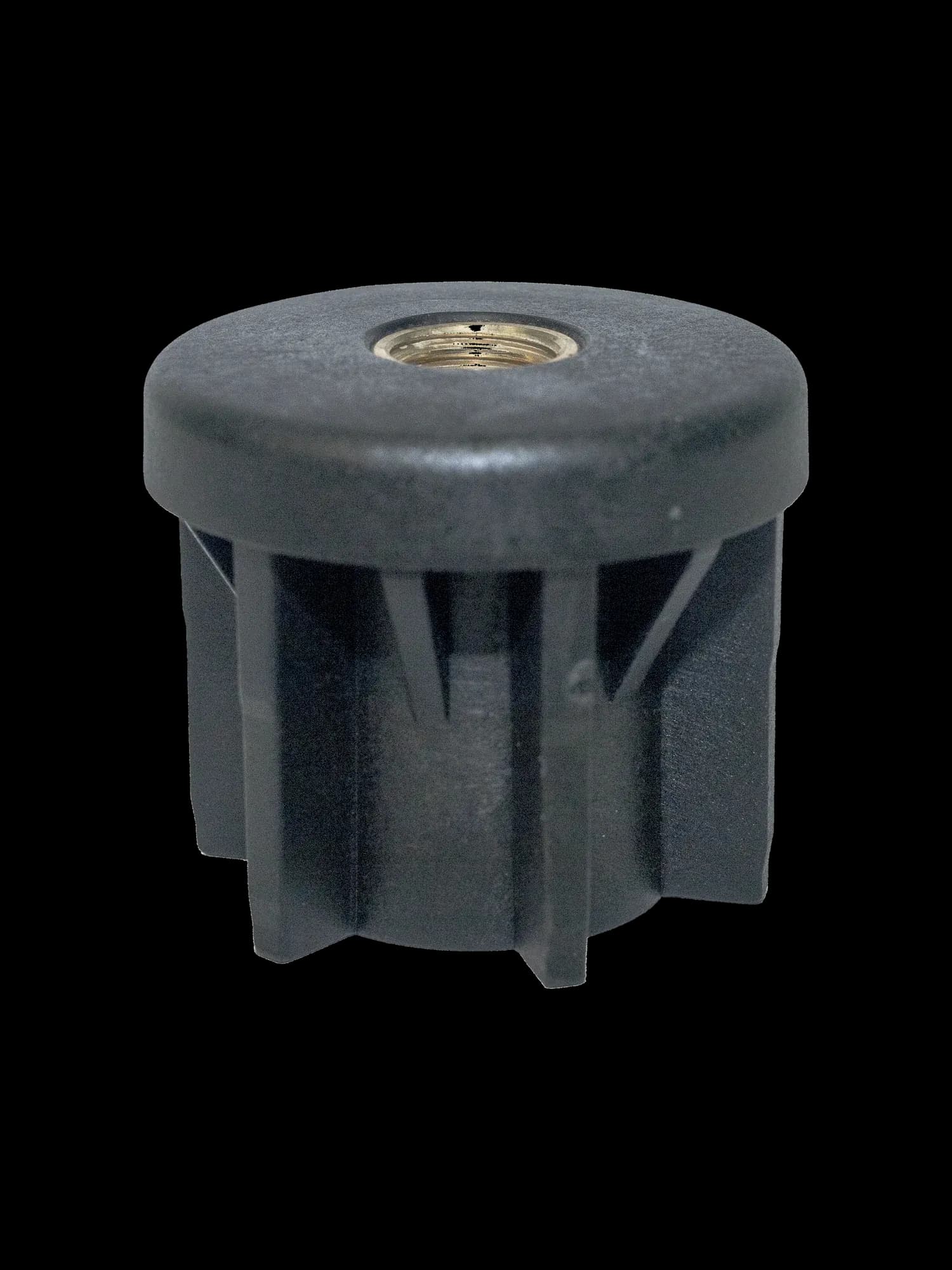

M16 50x1.6mm Threaded Tube Insert (RTHi-5372)
- Thread
- M16
- Tube size
- 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 850 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M16 50.8x1.6-2mm Threaded Tube Insert (RTHi-5877)
- Thread
- M16
- Tube size
- 50.8 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 450 kg
- Housing
- PA-GF
- Thread material
- SS304

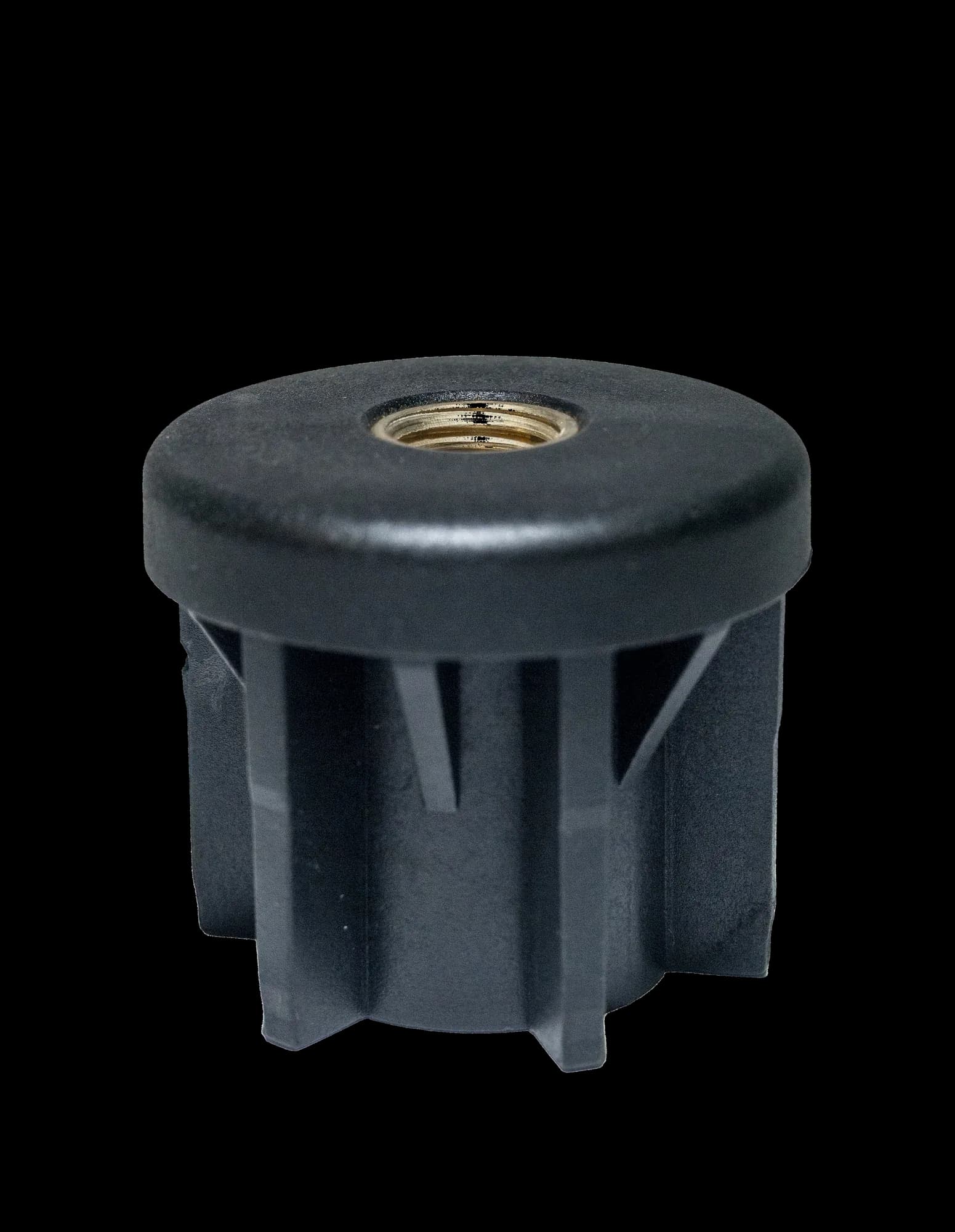

M16 60.3x2.5mm Threaded Tube Insert (RTHi-5730)
- Thread
- M16
- Tube size
- 60.3 mm
- Wall thickness
- 2.5 mm
- Max static load
- 900 kg
- Housing
- PA-GF
- Thread material
- Brass
How to choose Heavy Duty Round Threaded Tube Inserts
15 products- Compare thread sizes, tube sizes, load ratings before requesting pricing.
- Use the range and related product links to move between close alternatives without relying on filter-only URLs.
- Send Flexliner the part number and quantity when the shortlist is ready for quote confirmation.
Applications and Quote Prep
- Heavy Duty Round Threaded Tube Inserts are used where buyers need repeatable support, levelling, tube finishing, or machine setup from a known part number.
- The visible product table supports quoting by keeping commercial identifiers and selection specs on the page.
