Threaded Tube Inserts
Heavy Duty Square Threaded Tube Inserts
Heavy duty square threaded tube inserts for 350 - 1,000kg max load.
Need help choosing?
Tell us the load, thread length, thread size, base diameter, tilt type, and material.
Showing 58 of 58 products
M8 25x25x1.6mm Threaded Tube Insert (STHi-5705)
- Thread
- M8
- Tube size
- 25 x 25 mm
- Wall thickness
- 1.6 mm
- Max static load
- 450 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M8 38x38x1.6-2mm Threaded Tube Insert (STHi-5669)
- Thread
- M8
- Tube size
- 38 x 38 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 500 kg
- Housing
- PA
- Thread material
- MSZP
M8 40x40x1.6mm Threaded Tube Insert (STHi-5714)
- Thread
- M8
- Tube size
- 40 x 40 mm
- Wall thickness
- 1.6 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M8 40x40x2mm Threaded Tube Insert (STHi-5715)
- Thread
- M8
- Tube size
- 40 x 40 mm
- Wall thickness
- 2 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M8 50x50x1.6mm Threaded Tube Insert (STHi-5719)
- Thread
- M8
- Tube size
- 50 x 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M8 50x50x2mm Threaded Tube Insert (STHi-5720)
- Thread
- M8
- Tube size
- 50 x 50 mm
- Wall thickness
- 2 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP

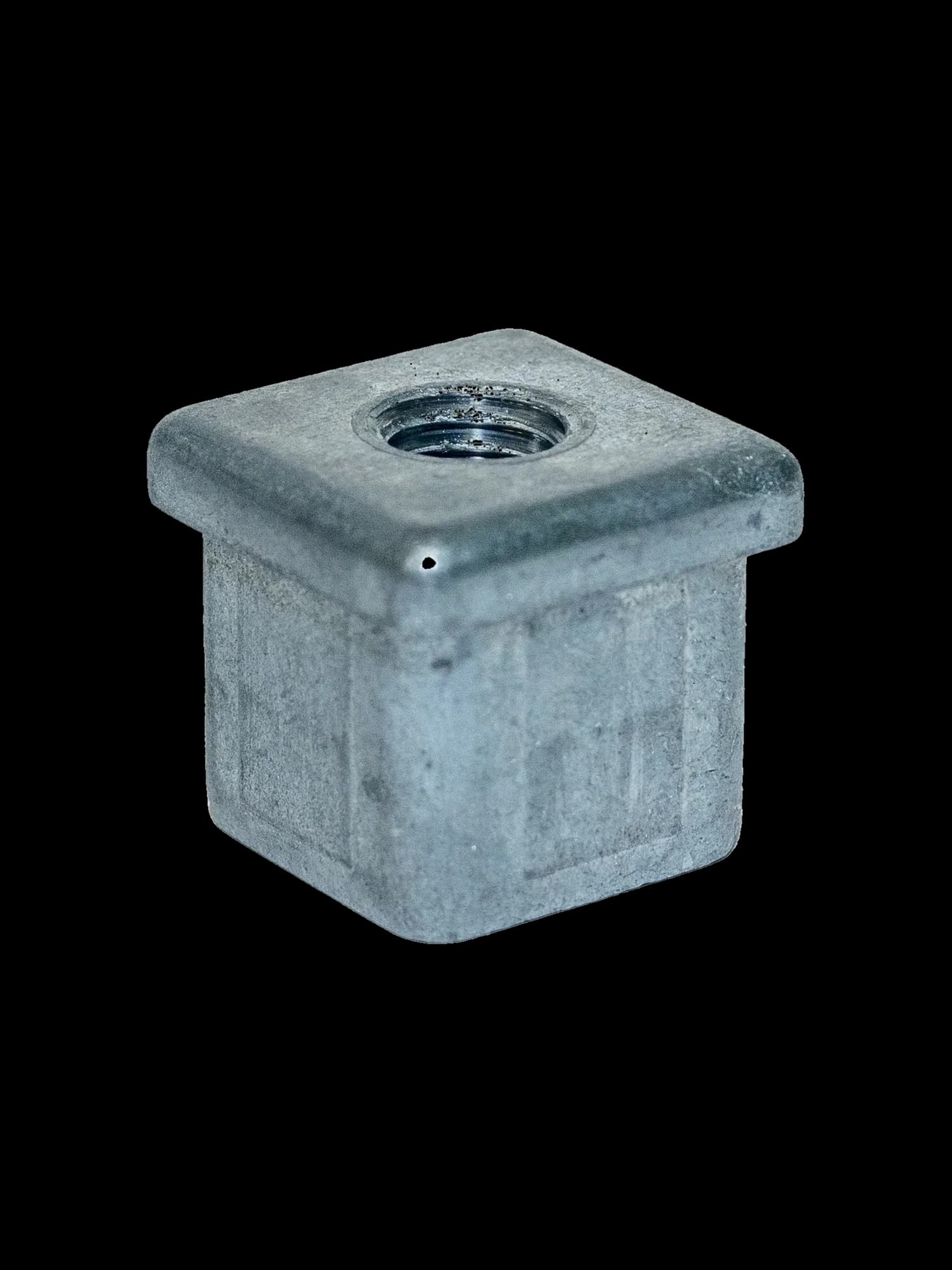

M10 25x25x2mm Threaded Tube Insert (SZTi-5621)
- Thread
- M10
- Tube size
- 25 x 25 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 25x25x1.6mm Threaded Tube Insert (SZTi-5775)
- Thread
- M10
- Tube size
- 25 x 25 mm
- Wall thickness
- 1.6 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 25.4x25.4x1.6mm Threaded Tube Insert (STHi-5625)
- Thread
- M10
- Tube size
- 25.4 x 25.4 mm
- Wall thickness
- 1.6 mm
- Max static load
- 500 kg
- Housing
- MS
- Thread material
- —
M10 25.4x25.4x1.2mm Threaded Tube Insert (STTi-5624)
- Thread
- M10
- Tube size
- 25.4 x 25.4 mm
- Wall thickness
- 1.2 mm
- Max static load
- 350 kg
- Housing
- MS
- Thread material
- —

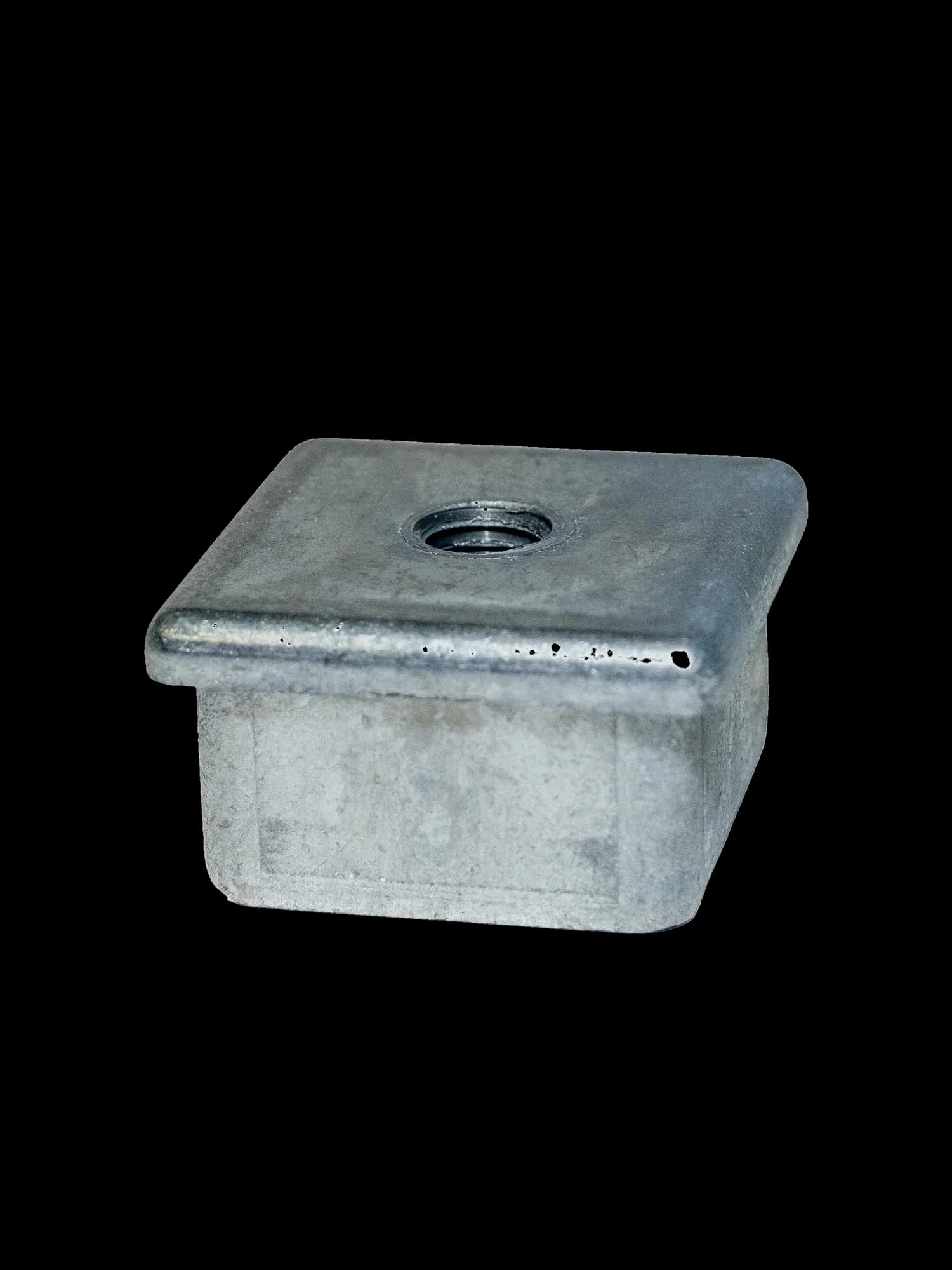

M10 30x30x2mm Threaded Tube Insert (STZi-5631)
- Thread
- M10
- Tube size
- 30 x 30 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 30x30x2.5mm Threaded Tube Insert (STZi-5632)
- Thread
- M10
- Tube size
- 30 x 30 mm
- Wall thickness
- 2.5 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 30x30x1.6mm Threaded Tube Insert (STZi-5776)
- Thread
- M10
- Tube size
- 30 x 30 mm
- Wall thickness
- 1.6 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 35x35x1.6mm Threaded Tube Insert (STHi-5707)
- Thread
- M10
- Tube size
- 35 x 35 mm
- Wall thickness
- 1.6 mm
- Max static load
- 700 kg
- Housing
- PA-GF
- Thread material
- BrassNP

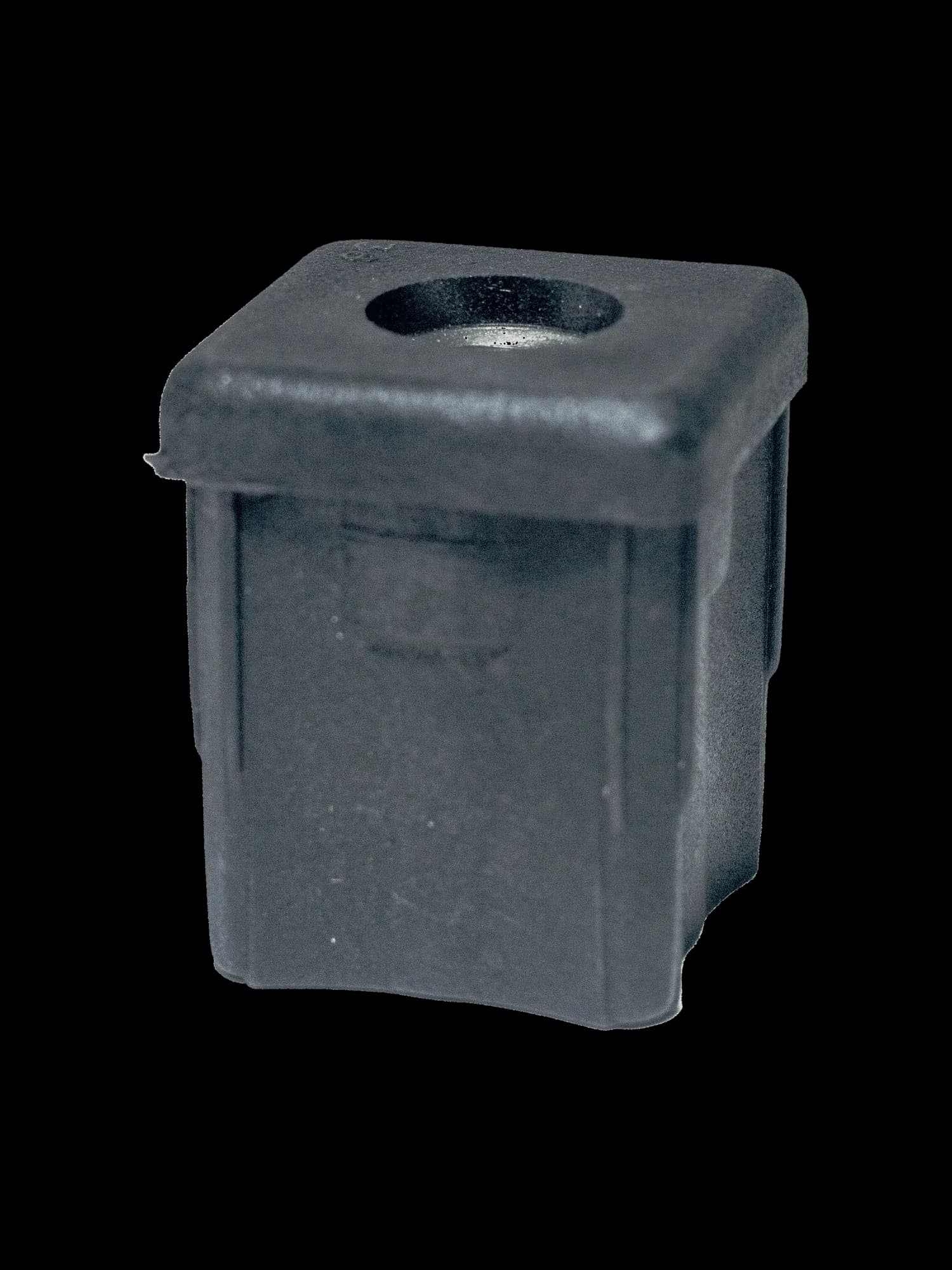

M10 38x38x1.6-2mm Threaded Tube Insert (STHi-5668)
- Thread
- M10
- Tube size
- 38 x 38 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 500 kg
- Housing
- PA
- Thread material
- MSZP
M10 40x40x2mm Threaded Tube Insert (STHi-5684)
- Thread
- M10
- Tube size
- 40 x 40 mm
- Wall thickness
- 2 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M10 40x40x1.6mm Threaded Tube Insert (STHi-5698)
- Thread
- M10
- Tube size
- 40 x 40 mm
- Wall thickness
- 1.6 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M10 40x40x2mm Threaded Tube Insert (SZTi-5416)
- Thread
- M10
- Tube size
- 40 x 40 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 40x40x2.5mm Threaded Tube Insert (SZTi-5417)
- Thread
- M10
- Tube size
- 40 x 40 mm
- Wall thickness
- 2.5 mm
- Max static load
- 500 kg
- Housing
- ZDC
- Thread material
- —
M10 40x40x1.6mm Threaded Tube Insert (SZTi-5777)
- Thread
- M10
- Tube size
- 40 x 40 mm
- Wall thickness
- 1.6 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M10 50x50x1.6mm Threaded Tube Insert (STHi-5687)
- Thread
- M10
- Tube size
- 50 x 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M10 50x50x2mm Threaded Tube Insert (STHi-5689)
- Thread
- M10
- Tube size
- 50 x 50 mm
- Wall thickness
- 2 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M10 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5820)
- Thread
- M10
- Tube size
- 50.8 x 50.8 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 750 kg
- Housing
- PA
- Thread material
- MSZP

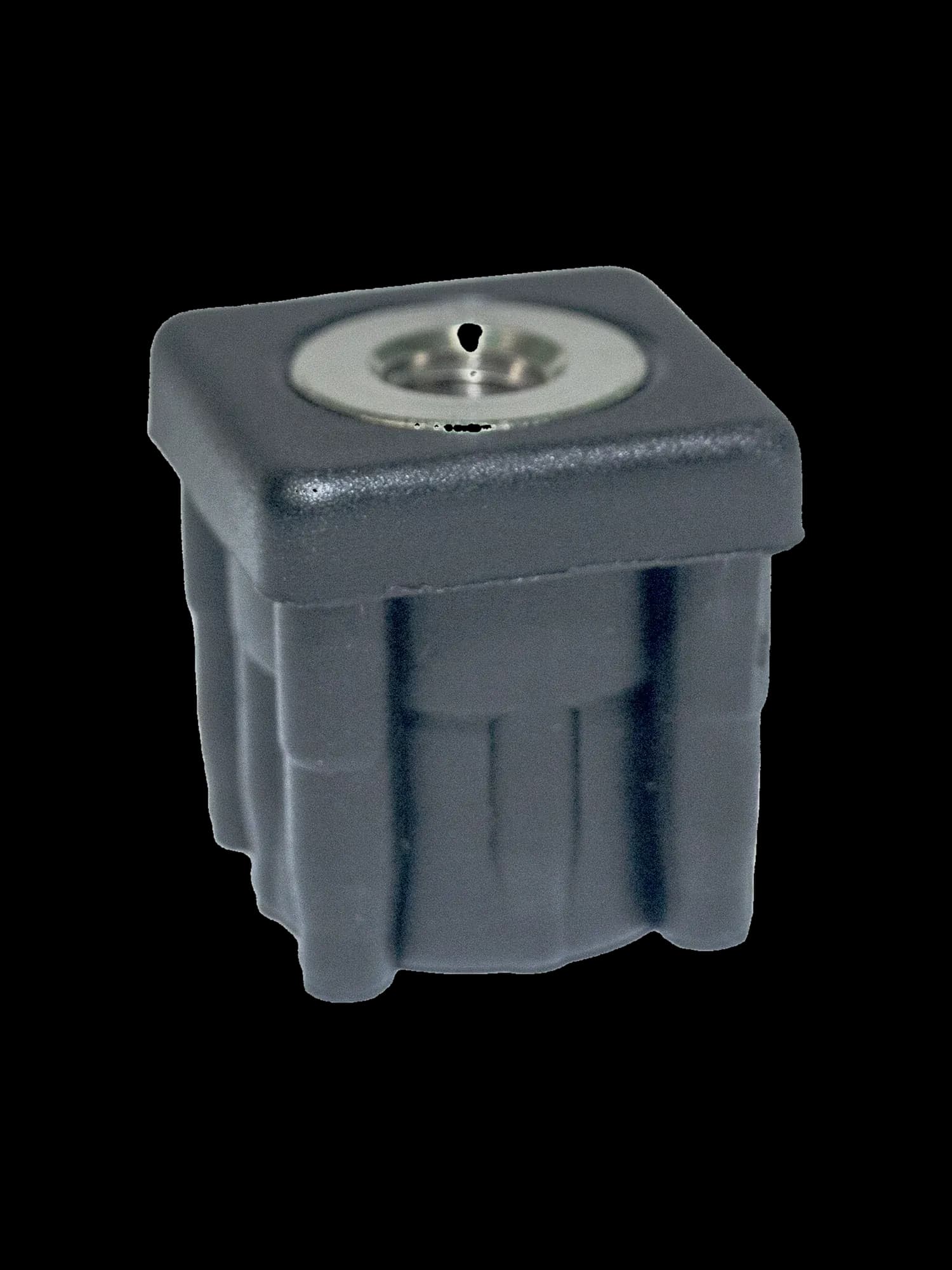

M12 25x25x1.6mm Threaded Tube Insert (STHi-5675)
- Thread
- M12
- Tube size
- 25 x 25 mm
- Wall thickness
- 1.6 mm
- Max static load
- 550 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M12 30x30x1.6mm Threaded Tube Insert (STHi-5678)
- Thread
- M12
- Tube size
- 30 x 30 mm
- Wall thickness
- 1.6 mm
- Max static load
- 550 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M12 30x30x2mm Threaded Tube Insert (SZTi-5635)
- Thread
- M12
- Tube size
- 30 x 30 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- ZDC
- Thread material
- —
M12 35x35x1.6mm Threaded Tube Insert (STHi-5708)
- Thread
- M12
- Tube size
- 35 x 35 mm
- Wall thickness
- 1.6 mm
- Max static load
- 750 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M12 38x38x1.6-2mm Threaded Tube Insert (STHi-5667)
- Thread
- M12
- Tube size
- 38 x 38 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 500 kg
- Housing
- PA
- Thread material
- MSZP

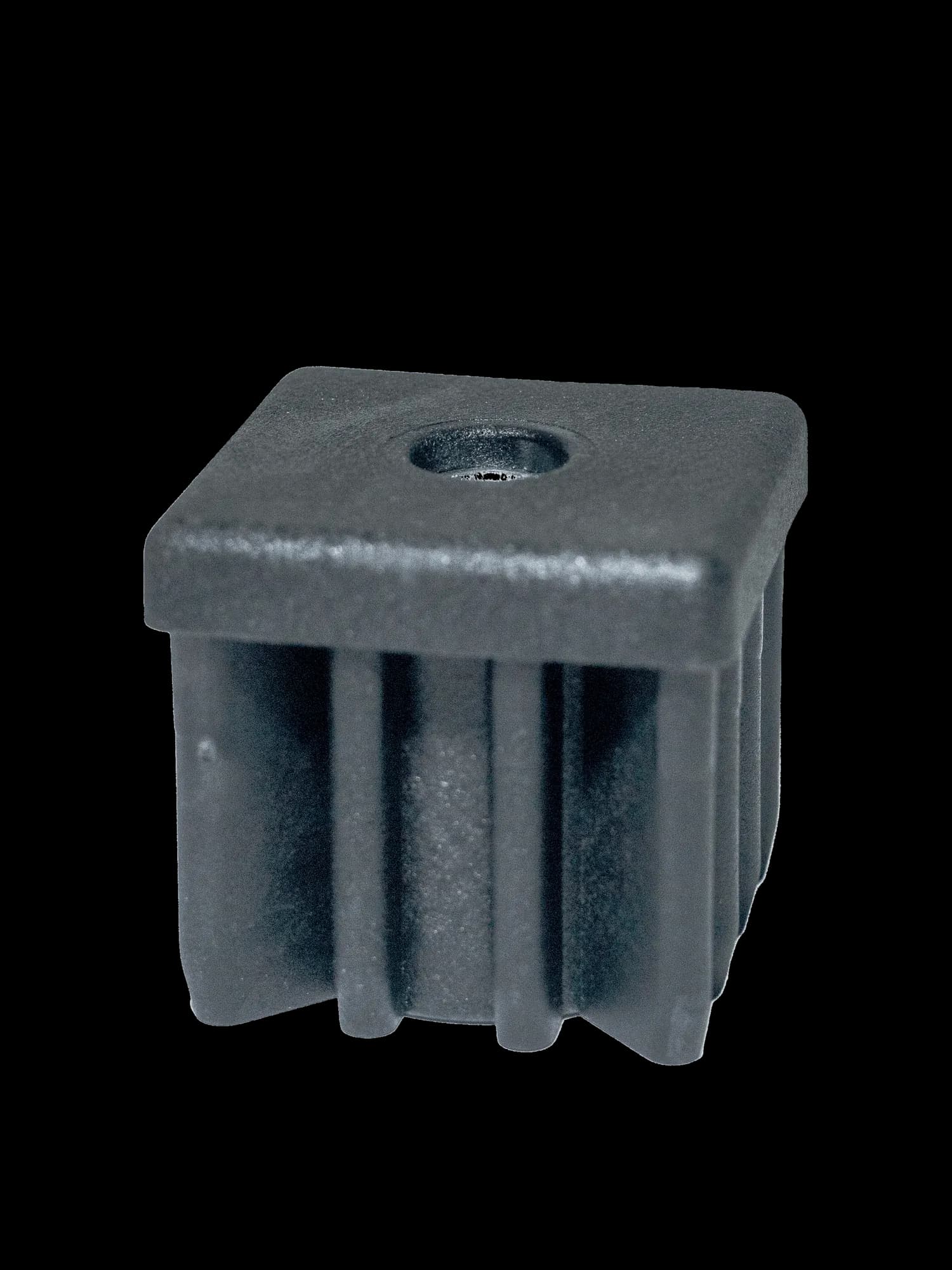

M12 40x40x1.6mm Threaded Tube Insert (STHi-5682)
- Thread
- M12
- Tube size
- 40 x 40 mm
- Wall thickness
- 1.6 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M12 40x40x2mm Threaded Tube Insert (STHi-5685)
- Thread
- M12
- Tube size
- 40 x 40 mm
- Wall thickness
- 2 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M12 50x50x1.6mm Threaded Tube Insert (STHi-5690)
- Thread
- M12
- Tube size
- 50 x 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M12 50x50x2mm Threaded Tube Insert (STHi-5692)
- Thread
- M12
- Tube size
- 50 x 50 mm
- Wall thickness
- 2 mm
- Max static load
- 1000 kg
- Housing
- PA
- Thread material
- MSZP
M12 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5822)
- Thread
- M12
- Tube size
- 50.8 x 50.8 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 750 kg
- Housing
- PA
- Thread material
- MSZP
M14 30x30x1.6mm Threaded Tube Insert (STHi-5706)
- Thread
- M14
- Tube size
- 30 x 30 mm
- Wall thickness
- 1.6 mm
- Max static load
- 600 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M14 35x35x1.6mm Threaded Tube Insert (STHi-5709)
- Thread
- M14
- Tube size
- 35 x 35 mm
- Wall thickness
- 1.6 mm
- Max static load
- 800 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M14 40x40x1.6mm Threaded Tube Insert (STHi-5716)
- Thread
- M14
- Tube size
- 40 x 40 mm
- Wall thickness
- 1.6 mm
- Max static load
- 850 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M14 40x40x2mm Threaded Tube Insert (STHi-5717)
- Thread
- M14
- Tube size
- 40 x 40 mm
- Wall thickness
- 2 mm
- Max static load
- 850 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M14 50x50x1.6mm Threaded Tube Insert (STHi-5722)
- Thread
- M14
- Tube size
- 50 x 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 850 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M14 50x50x2mm Threaded Tube Insert (STHi-5723)
- Thread
- M14
- Tube size
- 50 x 50 mm
- Wall thickness
- 2 mm
- Max static load
- 850 kg
- Housing
- PA-GF
- Thread material
- BrassNP

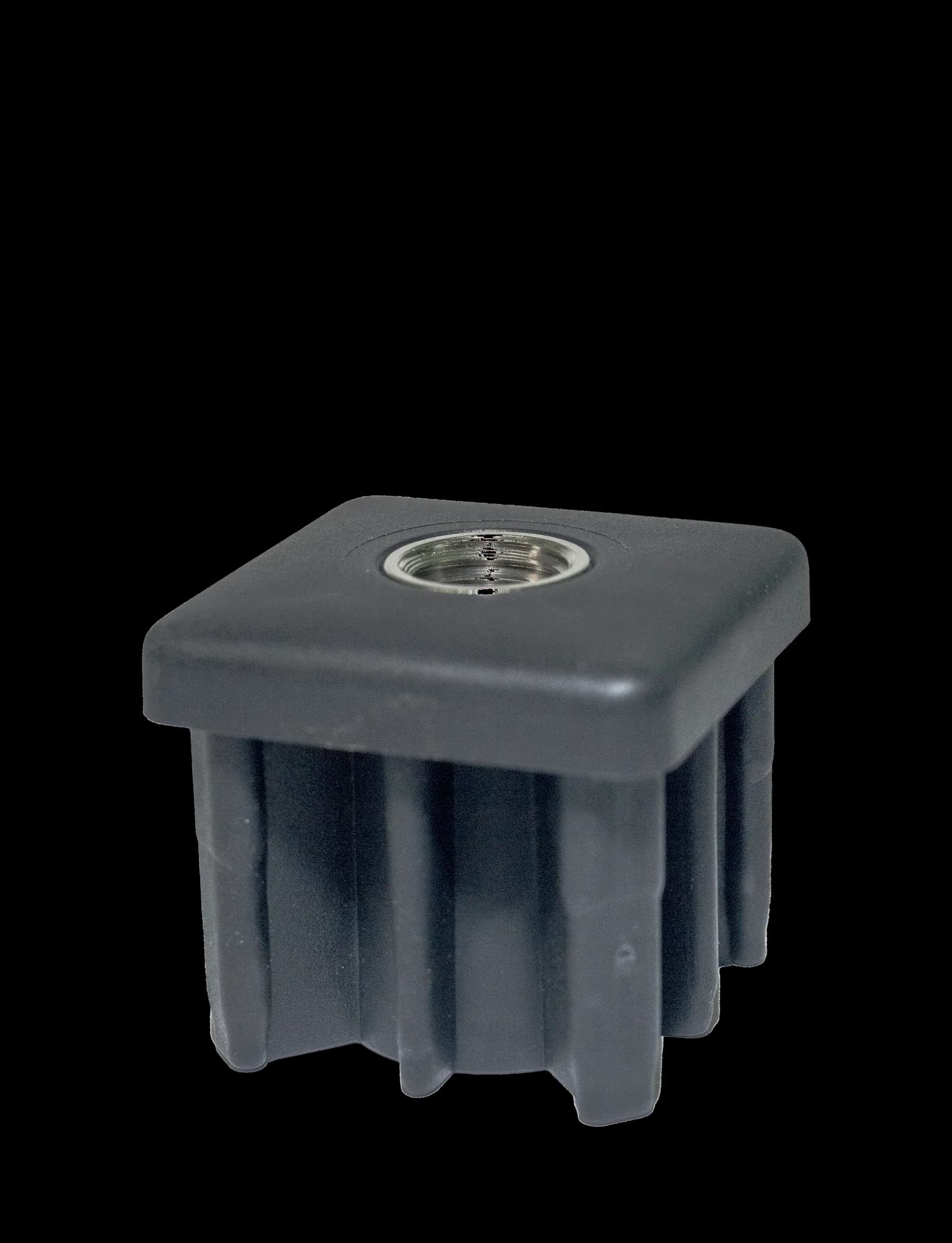

M16 30x30x1.6mm Threaded Tube Insert (STHi-5679)
- Thread
- M16
- Tube size
- 30 x 30 mm
- Wall thickness
- 1.6 mm
- Max static load
- 650 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M16 32x32x1.6-2mm Threaded Tube Insert (STTi-5806)
- Thread
- M16
- Tube size
- 32 x 32 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 350 kg
- Housing
- PA
- Thread material
- SS304
M16 35x35x1.6mm Threaded Tube Insert (STHi-5710)
- Thread
- M16
- Tube size
- 35 x 35 mm
- Wall thickness
- 1.6 mm
- Max static load
- 850 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M16 38x38x1.6-2mm Threaded Tube Insert (STHi-5809)
- Thread
- M16
- Tube size
- 38 x 38 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 400 kg
- Housing
- PA
- Thread material
- MSZP
M16 40x40x2mm Threaded Tube Insert (STHi-5670)
- Thread
- M16
- Tube size
- 40 x 40 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- PA
- Thread material
- BrassNP
M16 40x40x1.6mm Threaded Tube Insert (STHi-5683)
- Thread
- M16
- Tube size
- 40 x 40 mm
- Wall thickness
- 1.6 mm
- Max static load
- 900 kg
- Housing
- PA-GF
- Thread material
- Brass
M16 50x50x1.6mm Threaded Tube Insert (STHi-5691)
- Thread
- M16
- Tube size
- 50 x 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 900 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M16 50x50x2.5mm Threaded Tube Insert (STHi-5693)
- Thread
- M16
- Tube size
- 50 x 50 mm
- Wall thickness
- 2.5 mm
- Max static load
- 950 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M16 50x50x2mm Threaded Tube Insert (STHi-5724)
- Thread
- M16
- Tube size
- 50 x 50 mm
- Wall thickness
- 2 mm
- Max static load
- 950 kg
- Housing
- PA-GF
- Thread material
- BrassNP

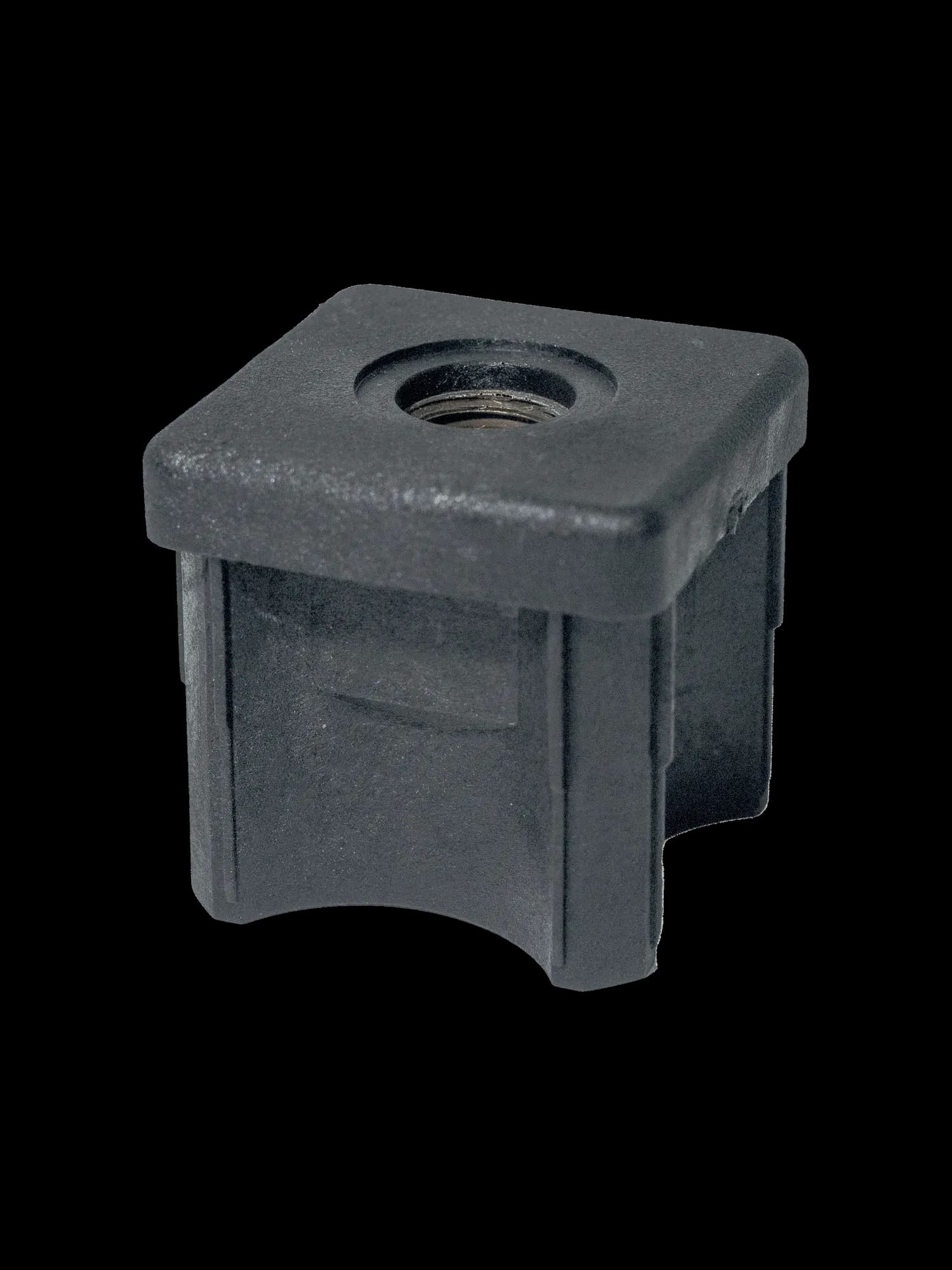

M16 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5814)
- Thread
- M16
- Tube size
- 50.8 x 50.8 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 750 kg
- Housing
- PA
- Thread material
- MSZP
M20 32x32x1.6-2mm Threaded Tube Insert (STTi-5427)
- Thread
- M20
- Tube size
- 32 x 32 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 500 kg
- Housing
- PA
- Thread material
- —
M20 35x35x1.6mm Threaded Tube Insert (STHi-5713)
- Thread
- M20
- Tube size
- 35 x 35 mm
- Wall thickness
- 1.6 mm
- Max static load
- 900 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M20 38x38x1.6mm Threaded Tube Insert (STHi-5879)
- Thread
- M20
- Tube size
- 38 x 38 mm
- Wall thickness
- 1.6 mm
- Max static load
- 500 kg
- Housing
- PA
- Thread material
- MSZP
M20 40x40x2mm Threaded Tube Insert (STHi-5671)
- Thread
- M20
- Tube size
- 40 x 40 mm
- Wall thickness
- 2 mm
- Max static load
- 800 kg
- Housing
- PA
- Thread material
- BrassNP
M20 40x40x1.6mm Threaded Tube Insert (STHi-5718)
- Thread
- M20
- Tube size
- 40 x 40 mm
- Wall thickness
- 1.6 mm
- Max static load
- 950 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M20 50x50x2mm Threaded Tube Insert (STHi-5725)
- Thread
- M20
- Tube size
- 50 x 50 mm
- Wall thickness
- 2 mm
- Max static load
- 900 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M20 50x50x1.6mm Threaded Tube Insert (STHi-5800)
- Thread
- M20
- Tube size
- 50 x 50 mm
- Wall thickness
- 1.6 mm
- Max static load
- 950 kg
- Housing
- PA-GF
- Thread material
- BrassNP
M20 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5728)
- Thread
- M20
- Tube size
- 50.8 x 50.8 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 750 kg
- Housing
- PA
- Thread material
- SS304

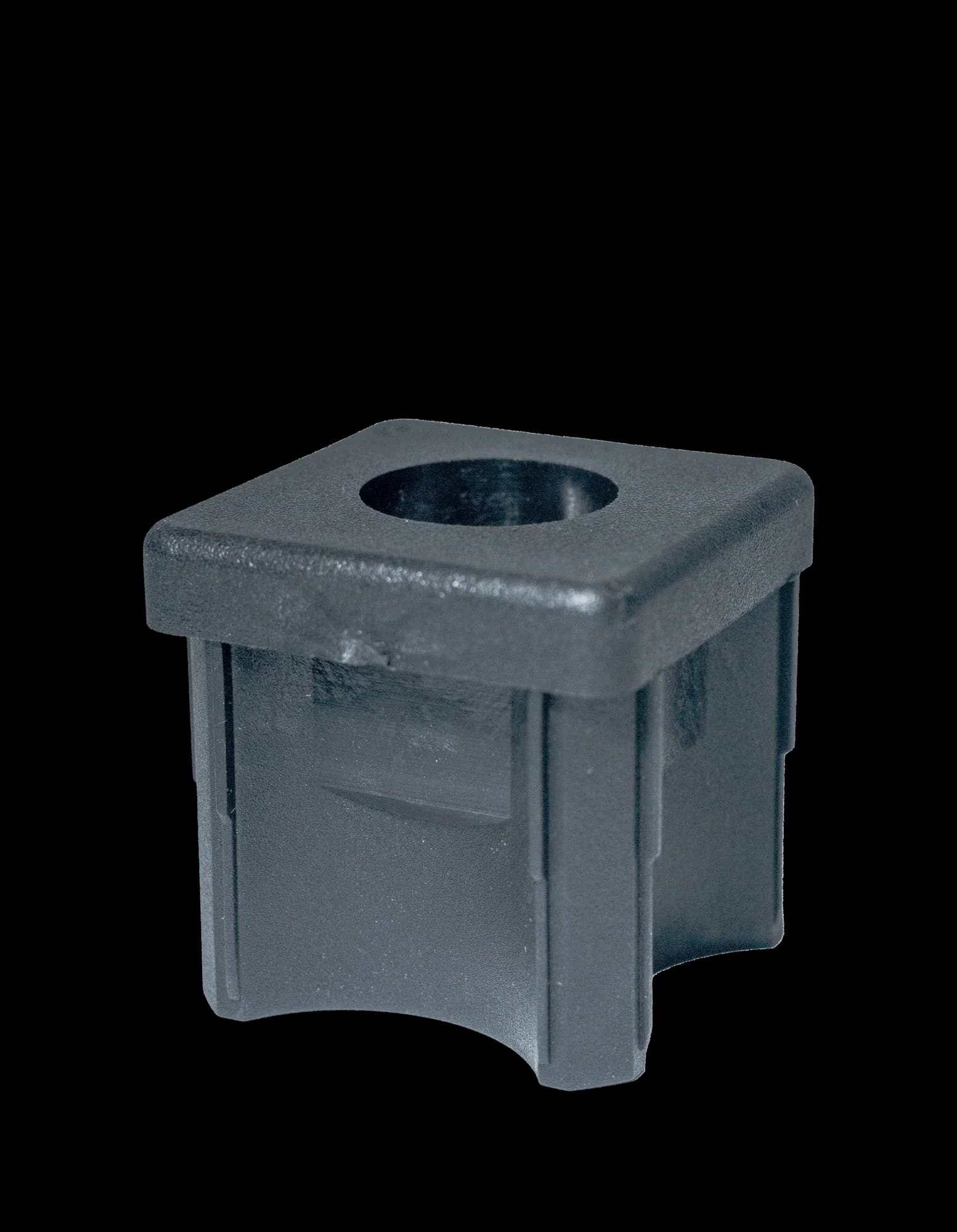

M20 50.8x50.8x1.6-2mm Threaded Tube Insert (STHi-5818)
- Thread
- M20
- Tube size
- 50.8 x 50.8 mm
- Wall thickness
- 1.6-2 mm
- Max static load
- 750 kg
- Housing
- PA
- Thread material
- Brass
How to choose Heavy Duty Square Threaded Tube Inserts
58 products- Compare thread sizes, tube sizes, load ratings before requesting pricing.
- Use the range and related product links to move between close alternatives without relying on filter-only URLs.
- Send Flexliner the part number and quantity when the shortlist is ready for quote confirmation.
Applications and Quote Prep
- Heavy Duty Square Threaded Tube Inserts are used where buyers need repeatable support, levelling, tube finishing, or machine setup from a known part number.
- The visible product table supports quoting by keeping commercial identifiers and selection specs on the page.
Related Ranges
Square Threaded Tube Inserts
148 products
Square threaded tube inserts for 50-300kg max load.
Round Threaded Tube Inserts
110 products
Round threaded tube inserts for 100 - 300kg max load.
Rectangle Threaded Tube Inserts
29 products
Rectangle threaded tube inserts for 75-900kg maximum loads.
Heavy Duty Round Threaded Tube Inserts
15 products
Heavy duty round threaded tube inserts for 350 - 900kg max load.
